DESCRIPTION

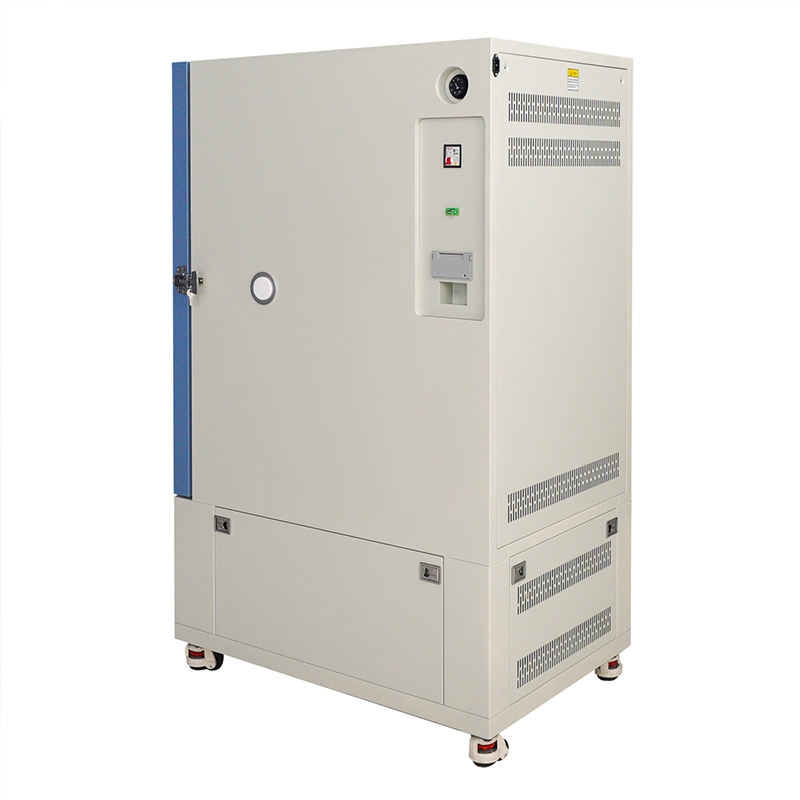

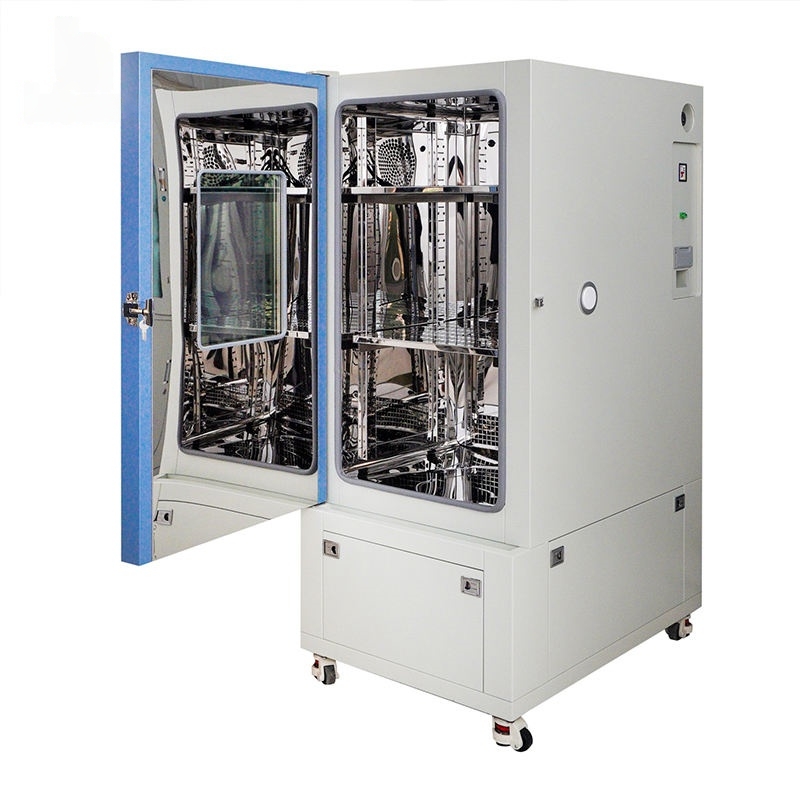

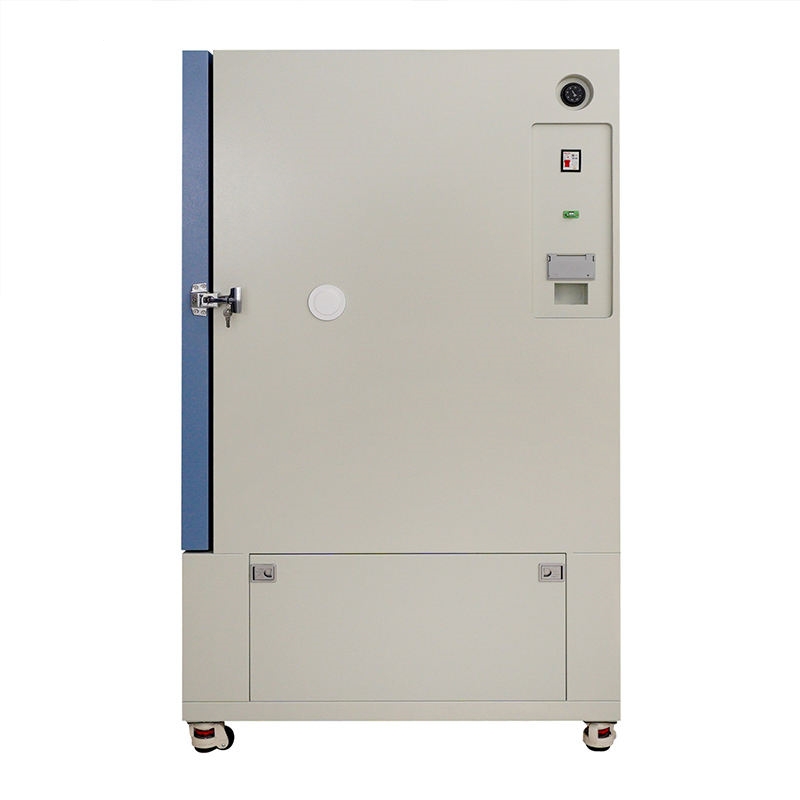

The drug stability test chamber is a scientific method to create a temperature, humidity environment and light environment that requires long-term stability for batch drug failure evaluation. It is suitable for accelerated testing, long-term testing, and high-humidity testing of pharmaceuticals and new drugs by pharmaceutical companies. The best choice for pharmaceutical companies to conduct large-scale drug storage and stability testing, to facilitate long-term moisture tolerance cycle testing of large quantities of drugs.
FEATURES
1. The centrifugal motor drives the fan blades to force the air to flow. The air is guided by the air duct to force the flow. The circulated gas enters the studio evenly, which can fully ensure the uniformity of temperature and humidity in the box. The left side of the box has a diameter 50mm test hole.
2. Adopt 2 sets of fully enclosed original imported compressors, one for use and one for standby automatically switch to ensure that the drug test runs continuously for a long time without failure. Break through the defect that domestic drug test chambers cannot run continuously for a long time.
3. There is no need for defrosting in continuous operation, to avoid fluctuations in temperature and humidity in the box due to defrosting during use.
4. The key components such as temperature and humidity controllers, compressors, and circulating fans are imported products, which have the characteristics of stable, safe and reliable operation for a long time.
5. It has an independent over-temperature, sound and light alarm to prompt the operator to ensure the safe operation of the laboratory without accidents.
6. It can be connected to a printer or 485 communication interface, and the temperature and time curve can be recorded with a computer and a printer, which provides a strong guarantee for the storage and playback of the test process data.
7. Structure: The equipment consists of a laboratory body, an air duct system, a heating system, a refrigeration system, a humidification system, and electrical control. The heater is located in the air duct and does not directly radiate the test sample. Uniform, reasonable structure, beautiful appearance
8. Water system: the water pump can run for a long time, automatically replenishing water to the electric steam humidifier, hidden water tank, you can add water when you pull out the water tank, and the water tank controller automatically prompts for water shortage
9. Safety protection function: grounding protection device, leakage/open circuit protection, heater short circuit protection, humidifier short circuit protection, water system water cut off, water shortage protection, compressor overload protection, independent over-temperature of studio, sound and light alarm
10. Meet the standard: GB10586-2006, meet the technical guidelines for chemical stability: strong light irradiation test 4500 ± 500LX, meet ICH: Q1B total illumination ≥ 1.2 × 106LuX.hr, near-ultraviolet energy ≥ 200W.hr/m²
SPECIFICATIONS
| Model | OYP-135GSD-CM | OYP-250GSD-CM | OYP-500GSD-CM | OYP-800GSD-CM | OYP-1000GSD-CM | OYP-1500GSD-CM |
| Volume | 135L | 250L | 500L | 800L | 1000L | 1500L |
| Temperature control range | 10 — 65.0℃（when there is light15.0-65.0℃ ） | |||||
| Temperature fluctuation | ±0.3℃ | |||||
| Temperature distribution accuracy | ≤ 1.5℃ | |||||
| Humidity range | 15-95%R.H | |||||
| Humidity Control Accuracy | ±3%R.H | |||||
| Light intensity | 100～10000LUX (adjustable) | |||||
| Illumination deviation | ±500LUX | |||||
| Illumination light source | International standard light source, LED white light | |||||
| Lighting method | top light | |||||
| Test hole | The right side of the box is φ50mm | |||||
| Noise | ≤60dB | |||||
| Refrigerant | DuPont R134a (environmentally friendly refrigerant) | |||||
| Controller | Color touch screen programmable controller | |||||
| Compressor | Two sets of independent Italian Zanussi compressors (fully enclosed), one for use and one for standby can be switched freely | |||||
| Humidification method | Built-in electric steam humidification, circulating water | |||||
| Air conditioning method | Forced ventilation internal circulation balance temperature and humidity regulation | |||||
| Heating method | Nickel-chromium alloy electric heater, PID adjustment | |||||
| Sensor | German Heraeus Class A high-precision armored platinum resistance sensor. | |||||
| Interior | SUS304 mirror stainless steel plate | |||||
| Exterior | The cold-rolled sheet is processed and formed, and the surface is electrostatically sprayed after pickling and phosphating. | |||||
| Open door structure | Single door, the seal between the door and the box is made of environmentally friendly non-polluting and anti-aging silicone rubber, and the door has a locking device | |||||
| Thermal insulation material | Made of ultra-fine fiberglass wool | |||||
| Door seal | Silicone rubber strip seal | |||||
| Glass inner door | Double-layer insulating glass 410×250 observation window | |||||
| Water storage tank | built-in | |||||
| Number of laminates | 2 sets, (one set includes illuminance sensor) can be adjusted up and down arbitrarily | |||||
| Casters | 4 removable casters, 2 with brake clips | |||||
| Power supply | 220V±10%； 50Hz； | |||||
| Rated power | 1.2 KW | 1.5KW | 2.0KW | 2.0KW | 2.5KW | |
| Running power | 0.5 KW | 0.5 KW | 0.8KW | 1.0KW | ||
| Studio size (W*D*H) | 500×450×600 | 500×500×1100 | 750×600×1100 | 700×960×1200 | 760*1100*1200 | 1390*800*1350 |
| Dimensions (W*D*H) | 950×630×1400 | 950×680×1650 | 1200×780×1750 | 880×1220×1960 | 950*1350*1960 | 1550*1250*2100 |
| Communication function | U disk export record data, communication, accumulated timing, printing, data storage, built-in 4GB memory card, mobile phone SMS alarm, three-level authority audit tracking function | |||||
