DESCRIPTION

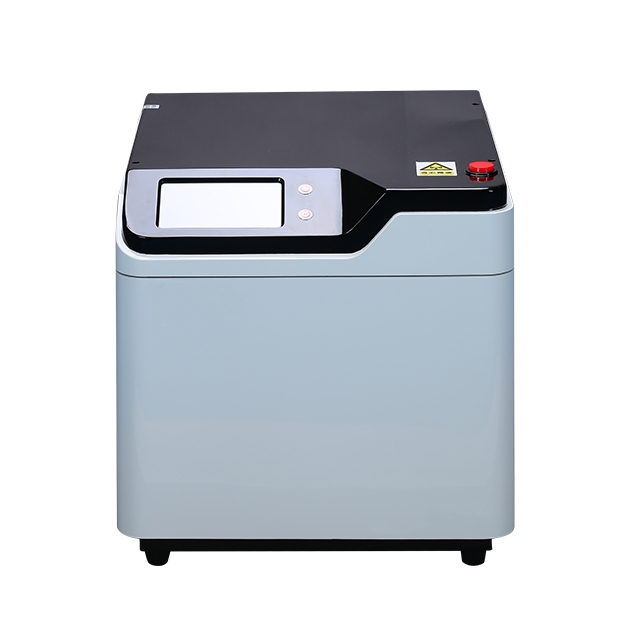

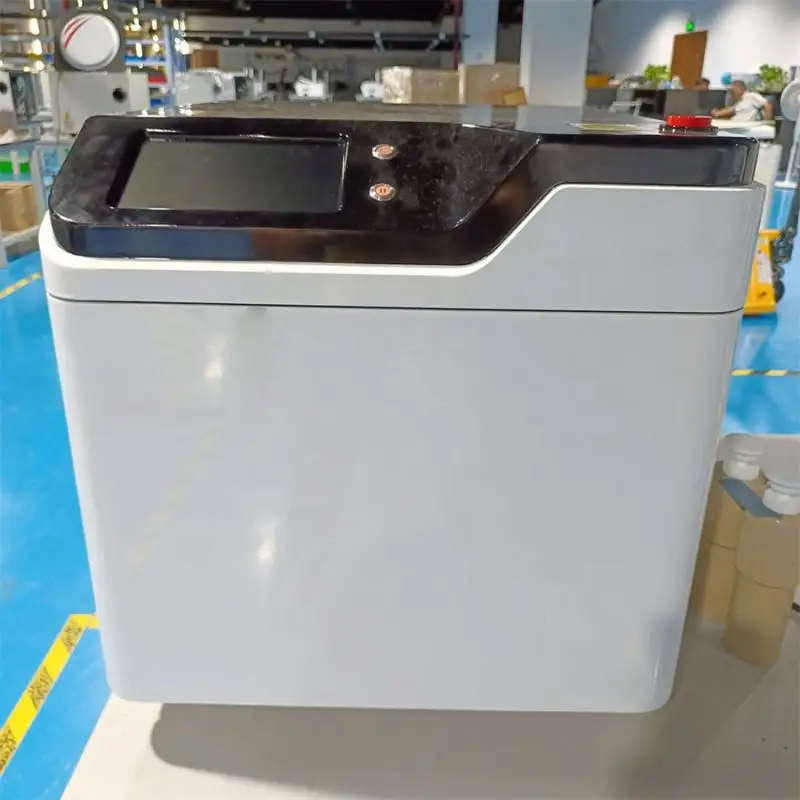

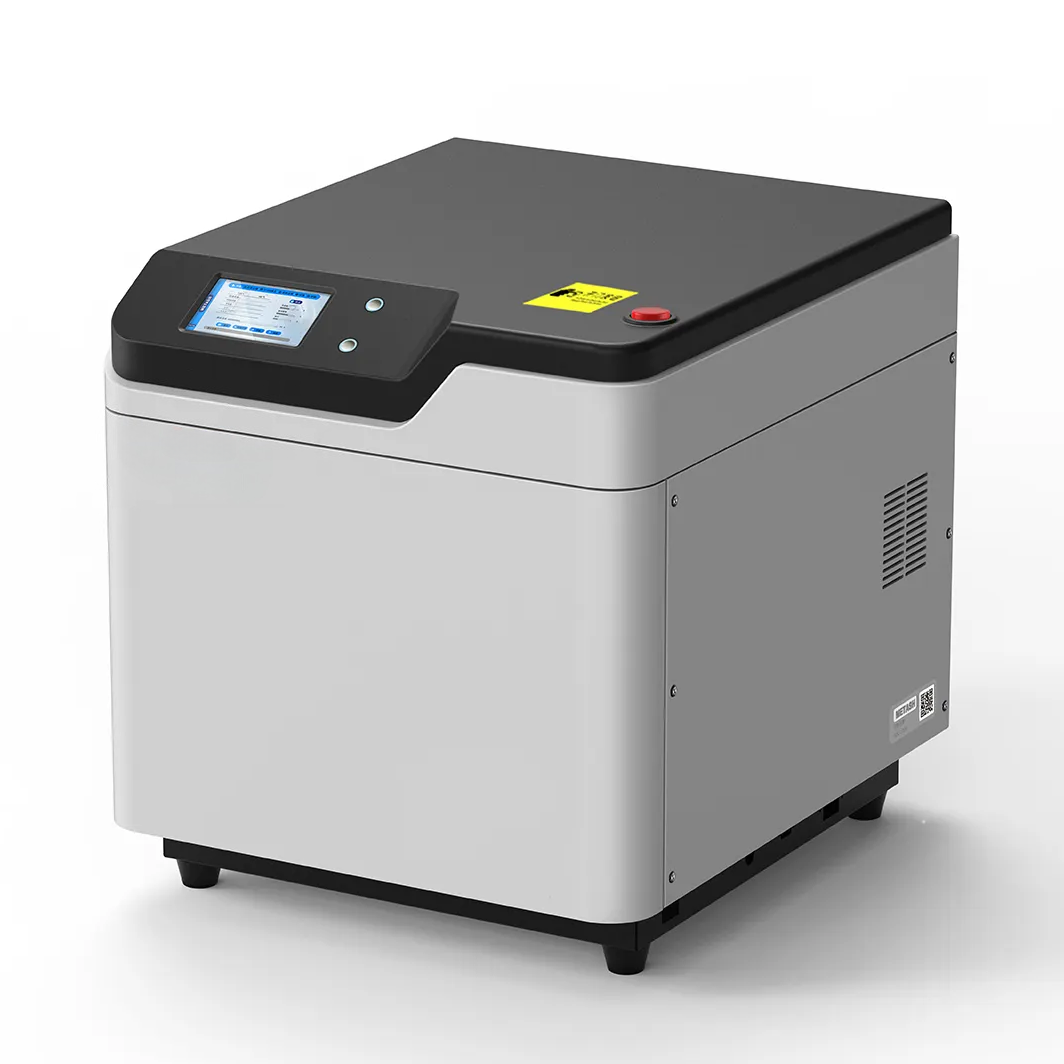

OMD-610 MINI is a mini and economic model of LMD-610 Series. The compact body owns same powerful performance, up to 10-position rotor meets most of experiment requirements, which would be a good choice for school labs, general factory labs and research institutes, etc.
FEATURES

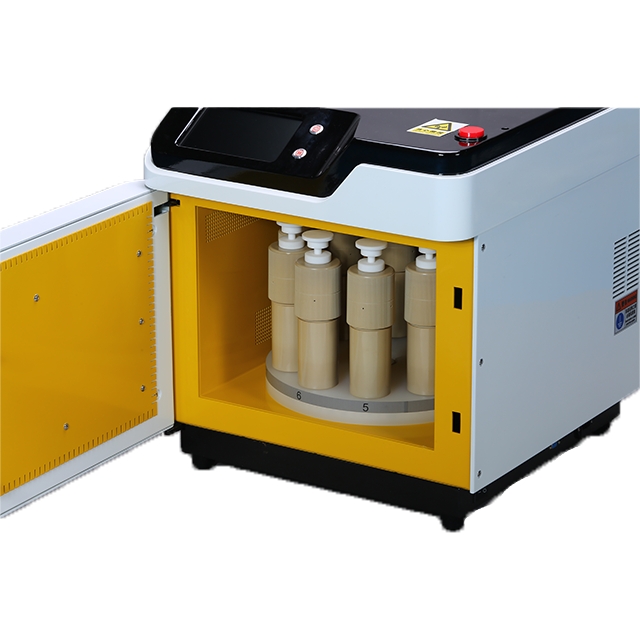

1.Compatible with 6/8/10-position rotor which meets different digestion demands.
Vertical waveguide design, 3D output technology and harmonic power frequency highly ensure uniform microwave distribution.
2.The imported contactless IR sensor and pressure sensors are adopted in temperature and pressure controlling system, which realizes the real-time monitoring of temperature and pressure in each vessel and display the T&P scanning curve.
3.No consumables, e.g. bursting disk, sealing cup, etc. lower the maintenance cost.
4.The strong outer shell is made of intensive carbon fiber and polymeric materials which highly ensure the safety.
5.Equipped with smart 7 inch touch screen, intelligent software and user-friendly interface.
Multiple international application methods are pre-installed. Users can also edit, modify and delete the specific methods.

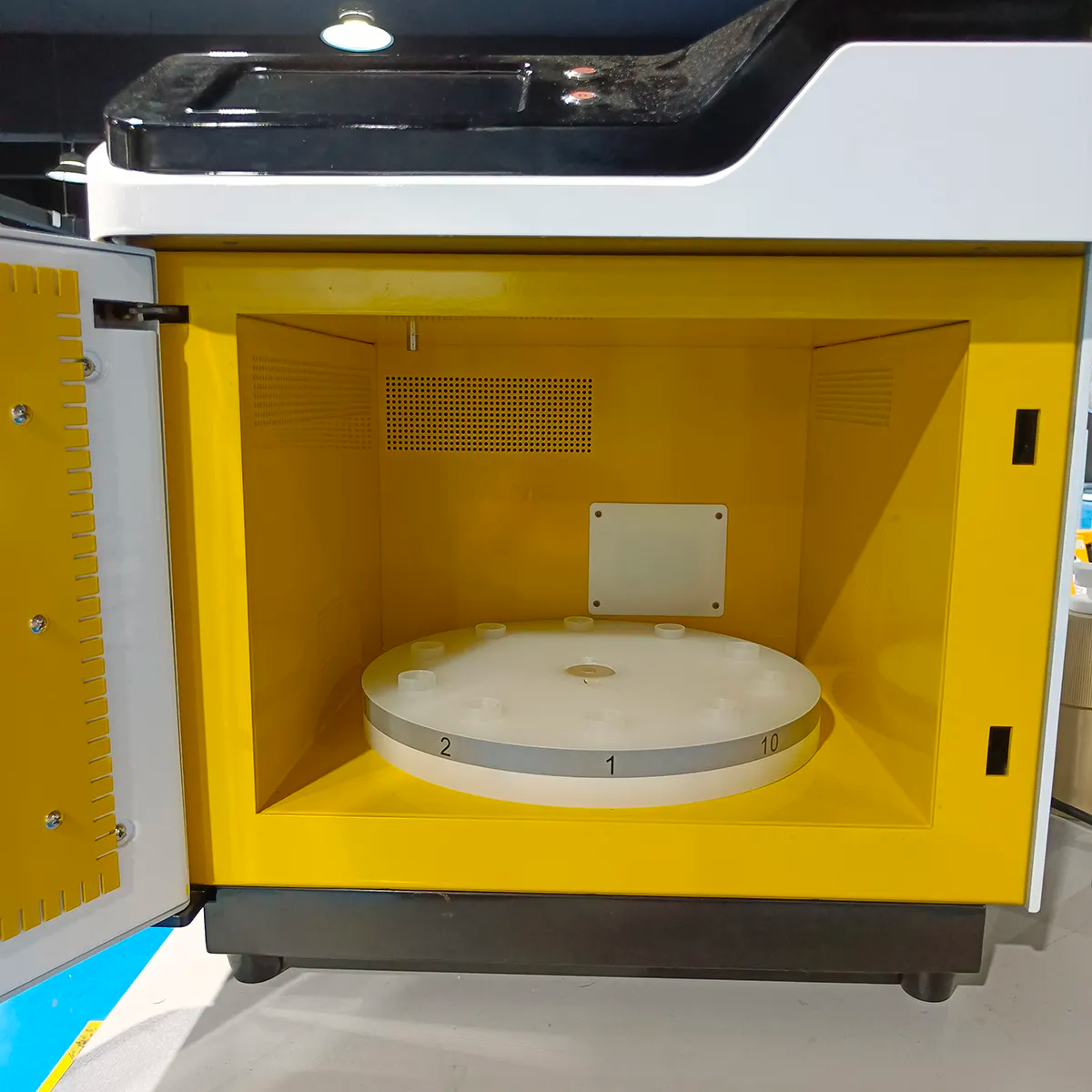

6.Equip with 316L stainless explosion-proof cavity, coated with multilayer anticorrosive and heat resisting coatings, which greatly prolongs its service life and ensure the safety of operation.
7.High power turbulent air cooling design makes fast cooling.
Professional electromagnetic protection design, compatible with high-level microwave leakage protection standards.
SPECIFICATIONS
| Model | OMD-610MINI-T6 | OMD-610MINI-T8 | OMD-610MINI-T10 |
| Vessel Quantity | 6 | 8 | 10 |
| Temperature Monitoring System | Contactless IR sensor All vessels scanning monitoring | ||
| Pressure Monitoring System | Contactless pressure sensors All vessels scanning monitoring | ||
| Working Pressure Range | 0-6MPa | ||
| Working Temperature Range | 50-400°C Accuracy: ±0.1 °C | ||
| Max. Working Temperature | 250°C | ||
| Vessel Volume | 100mL | ||
| Display | Smart 7 inch color touch screen | ||
| Rotation Mode | 360° continuous rotation | ||
| Microwave Power | 0～1000 W (Adjustable) | ||
| Microwave Frequency | 2450MHz | ||
| Cavity Volume | 35L | ||
| Microwave Leakage | <5mw/cm2 | ||
| Power | AC 220V±10%, 10A, 50/60HZ | ||
| Dimension (LXW><H) | 490mm*560mm*533mm | ||
| Weight | 40KG | ||
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
