DESCRIPTION
High speed centrifuge is a technique which involves the application of centrifugal force to separate particles from a solution. It is widely used in the field of medicine, life science, agriculture science, institute and so on, used in the area of protein precipitation, RNA extraction and clinical sample processing.
FEATURES
1. Brushless DC motor in great torque, no carbon dust pollution, unnecessary to maintain, quick in speed up and down.
2. Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.
3. Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction, safe and reliable.
4. Microprocessor control;
5. LCD display screen is optional, 10 programs stored in the memory, 10 speed rate for optional.
6. Three-stage vibration reduction, to reach the best centrifugal result.
SPECIFICATIONS
| Model | H-16 |
| Max speed | 16000r/min |
| Max RCF | 20600*g |
| Speed accuracy | ±50r/min |
| Time range | 0~99min |
| Capacity | 6*100ml |
| Noise | ≦65dBA |
| Rotor identification | Automatic identification |
| Dimension | 515*370*320mm |
| Packaged dimension | 730*430*425mm |
| Weight | 42KG |
| Packaged weight | 48KG |
| Power | AC110/220V, 50-60HZ,10A |
| Package | wooden box |

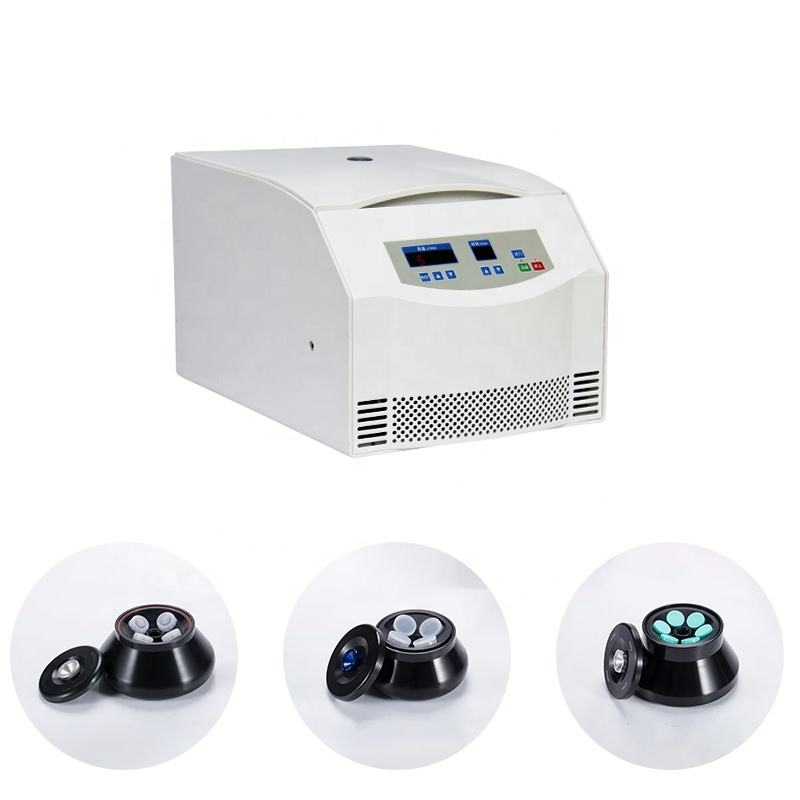

Optional rotors:
| N030416 | Angle Rotor | 15000 | 30×0.5ml | 18510 |
| NO30402 | Angle Rotor | 14000 | 40×0.5ml | 19970 |
| NO30401 | Angle Rotor | 16000 | 12×1.5/2ml | 17940 |
| N030403 | Angle Rotor | 15000 | 24×1.5/2M | 20600 |
| N030404 | Angle Rotor | 13500 | 30×1.5/2ml | 19340 |
| NO30444 | Angle Rotor | 13000 | 48×1.5/2ml | 17930 |
| N030405 | Angle Rotor | 15000 | 16×5ml | 19350 |
| N030406 | Angle Rotor | 14000 | 12×7ml | 16370 |
| NO30415 | Angle Rotor | 14000 | 6×10ml | 16460 |
| N030408 | Angle Rotor | 12000 | 12×10ml | 14510 |
| N030455 | Angle Rotor | 11000 | 8×15ml | 12730 |
| N030407 | Angle Rotor | 10000 | 12×15ml | 11840 |
| NO30627 | Angle Rotor | 5000 | 30×15ml | 3830 |
| NO30409 | Angle Rotor | 12000 | 8×20M | 14510 |
| NO30410 | Angle Rotor | 12000 | 6×30M | 14000 |
| NO30411 | Angle Rotor | 11000 | 6×50M | 13480 |
| NO30412 | Angle Rotor | 7000 | 8×50M | 6190 |
| NO30413 | Angle Rotor | 10000 | 4×100ml | 10310 |
| N030414 | Angle Rotor | 10000 | 6×100ml | 11380 |
| N030639 | Low Speed Angle Rotor | 5000 | 24×15ml | 3500 |
| N030480 | Horizontal Rotor | 15000 | 4×5ml | 19920 |
APPLICATION
Biotechnology Biochemistry- Clinical Diagnostic Laboratories
- Pharmaceutical Chemical Industries
- Environmental and Research
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.

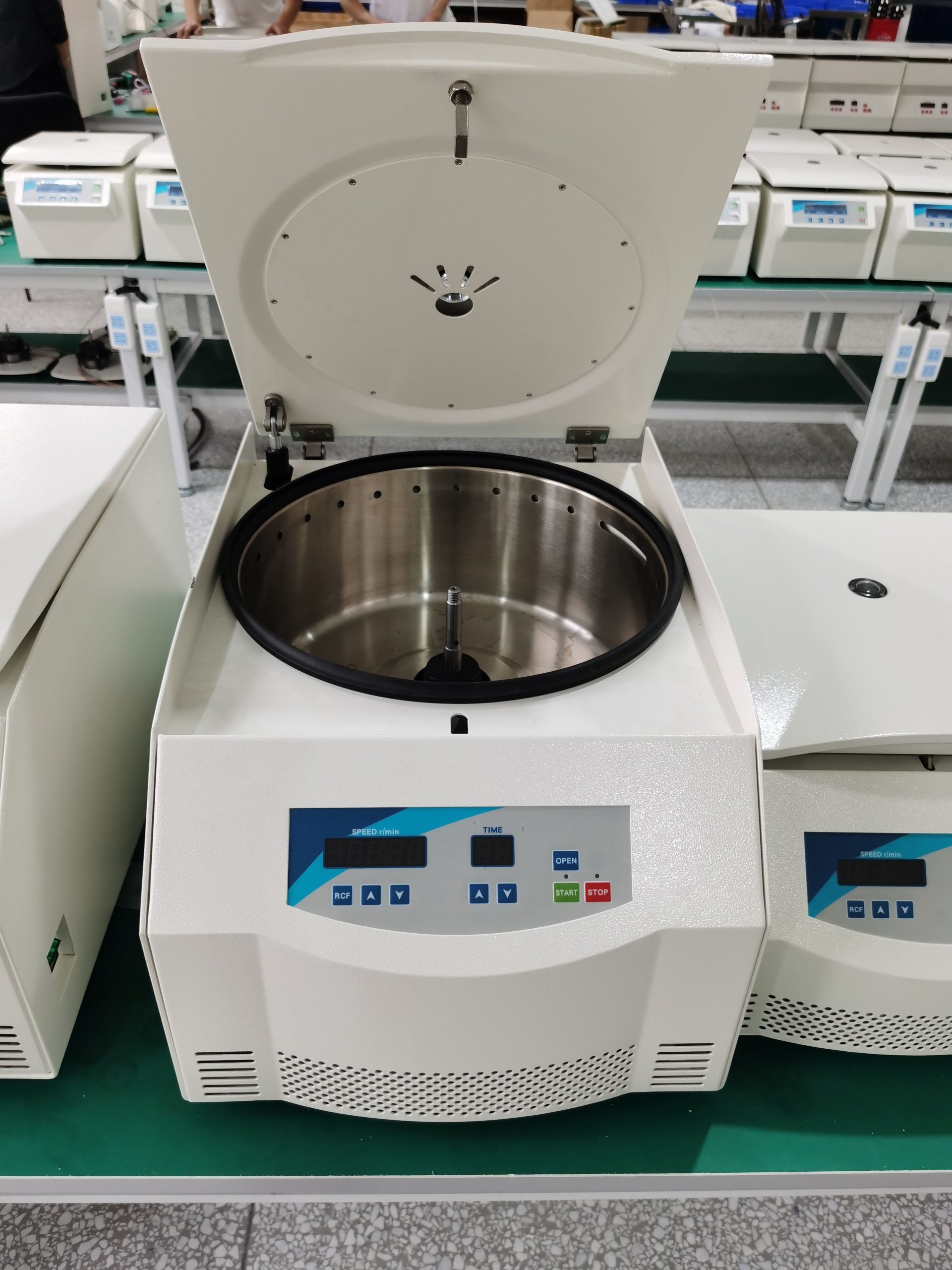

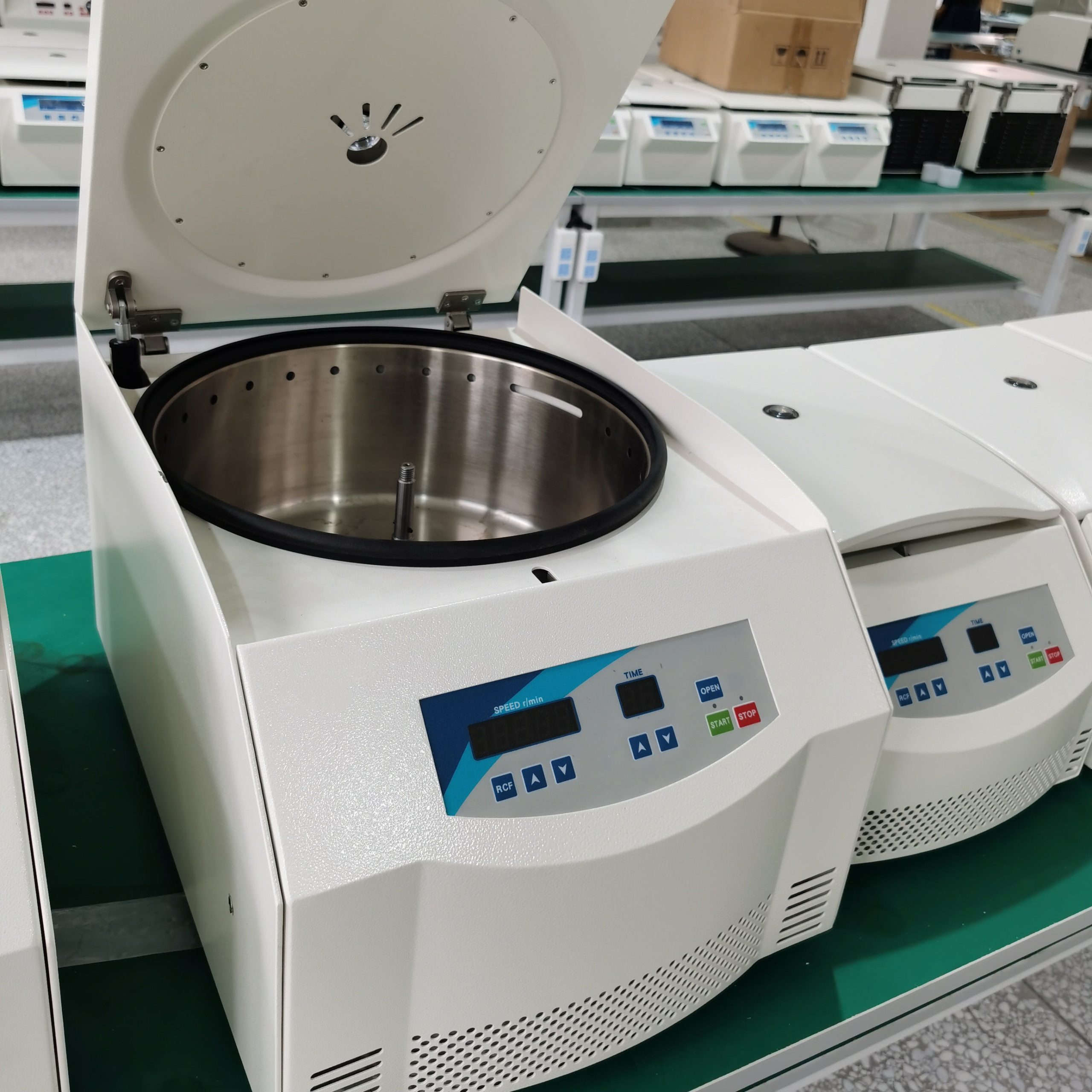

OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
