DESCRIPTION
This LAB series deionization water machine are suitable for all kinds of physical and chemical detection, biochemical analysis, blood test, micro analysis, washing special, HPLC, IC, GC, analysis experiments.
FEATURES

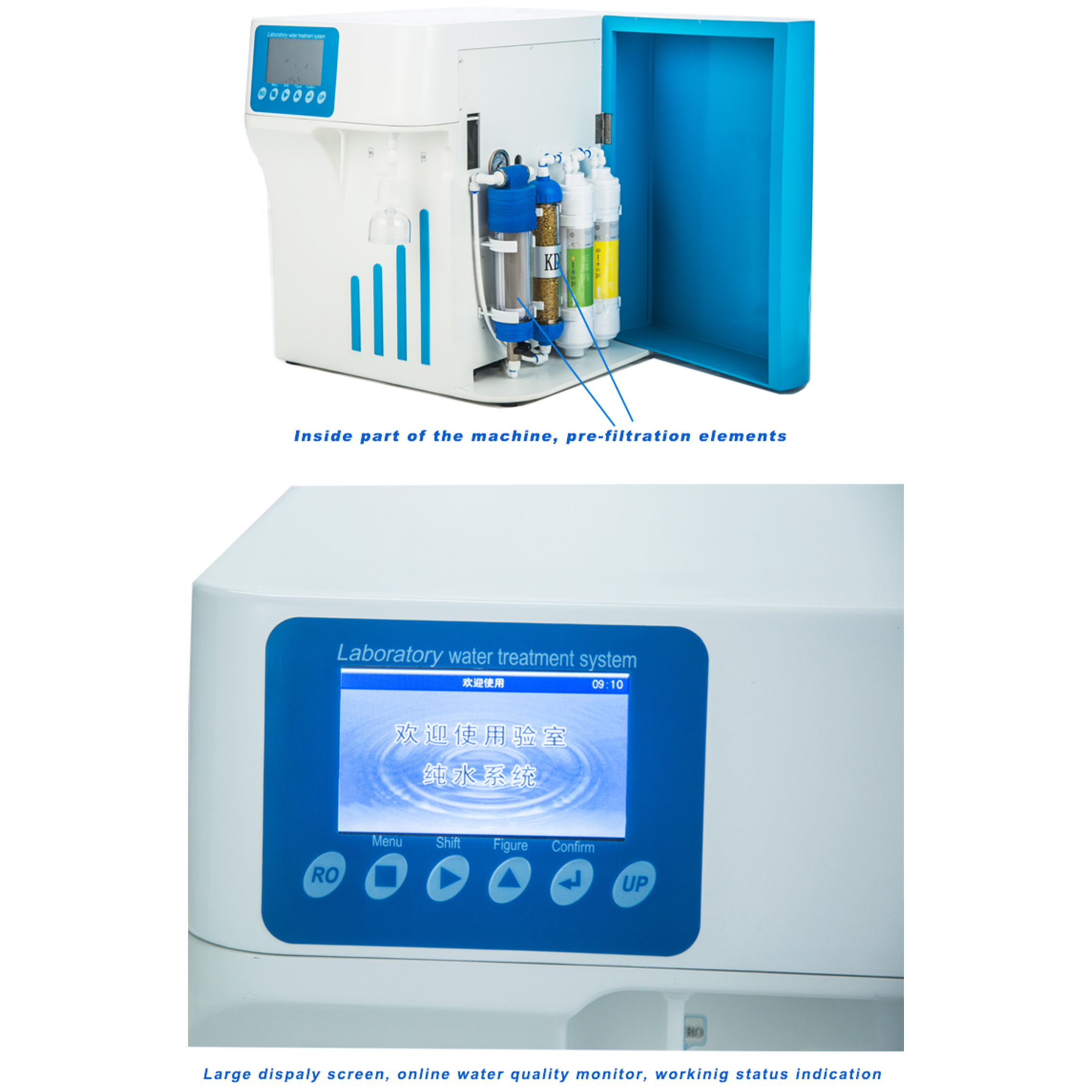

1. Large screen color touch LCD display intelligent operation man-machine interface
2. Double password protection, user password protection, initial password factory mode password protection
3. It Timing standby and automatic shutdown, all the output will stop automatically and enter shutdown mode when shutdown time is up
4. Complete managing functions for RO water and ultra-pure water making, system water intake, system circulation and disinfection.
5. Perfect functions for water-lack protection, high pressure full water protection and breakdown warning.
6. Ultra low radiation. Advanced electromagnetic compatibility design.
7. Complete historical alarms, historical water intake records, and consumable life management functions.
8. With analog pressure sensor and analog liquid level sensor, directly display the inlet pressure and the water tank storage capacity
9. Equipped with USB Host interface, it supports data output of historical alarm record and historical water intake record.
10. Equipped with RS232 communication interface, it can be connected to micro printer or monitoring software.
11. Low-voltage 24VDC is used as the main power supply, which meets the safety regulations and meets the requirements of humid environment, and will not cause personal injury.
12. Three-way water quality monitoring, which can display RO conductivity value, UP resistivity value, temperature value, raw water TDS value and pressure, and equipment operating status indication.
13. The innovative built-in transparent pressure tank, and the unique replaceable inner tank water storage bag is designed with nano antibacterial technology.
14. Configure front-end 316L stainless steel precision mesh filter for manual blowdown.

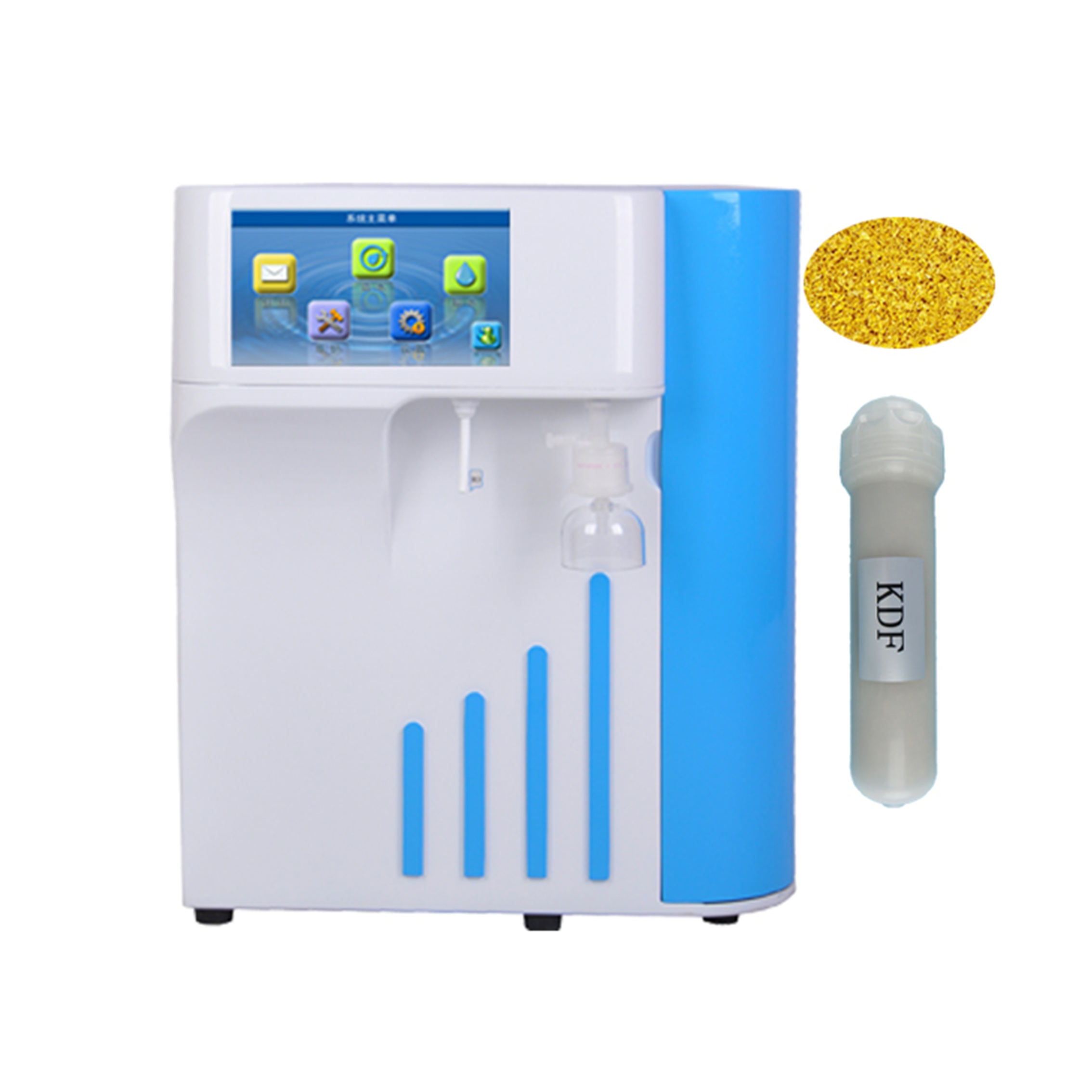

15. KDF device with USA original filtering material, removes chlorine, heavy metals and inhibits the growth of bacteria at the front of pure water, can better protects the post-purification system.
SPECIFICATIONS
| Model | Standard; Eliminating endotoxin; Low TOC; Synthesizing | |||
| LAB-WP-10 | LAB-WP-F10 | LAB-WP-V10 | LAB-WP-VF10 | |
| LAB-WP-20 | LAB-WP-F20 | LAB-WP-V20 | LAB-WP-VF20 | |
| LAB-WP-30 | LAB-WP-F30 | LAB-WP-V30 | LAB-WP-VF30 | |
| Process | PRE+ KDF+ PP+ AC+ RO+ UP+ TF | PRE+ KDF+ PP+ AC+ RO+ UP+ UF+ TF | PRE+ KDF+ PP+ AC+ RO+ UP+ UV+ TF | PRE+ KDF+ PP+ AC+ RO+ UP+ UV+ UF+ TF |
| Output(25℃） | 10L/H, 20L/H, 30L/H | |||
| Flow rate | Up to 2 liters/minute(with pressure tank) | |||
| Pure water outlet | 2: reverse osmosls water, ultra-pure water | |||
| Ultra pure water quality | ||||
| Resistivity(25℃） | 18.2MΩ.cm | |||
| TOC | <10ppb | <10ppb | <3ppb | <3ppb |
| Bacteria | <0.1cfu/ml | |||
| Particle(>0.22μm） | <1/ml | |||
| Endotoxin | N/A | <0.001Eu/ml | N/A | <0.001Eu/ml |
| RO water quality | ||||
| Ion rejection rate | 95%-99%(new RO membrane) | |||
| Particles and bacteria rejection rate | >99% | |||
| Feed water requirements | Tap water, temperature: 5-45℃, pressure: 0.15-0.4Mpa | |||
| Dimension and weight | L*W*H: 47*45*55cm/Weight: about 30KG | |||
| Electrical requirements | AC110-240V, 50/60Hz | |||
| Power | 48-240W | |||
| Standard configuration | Machine(including 1 set of purification column)+terminal filter+ accessories package | |||
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
