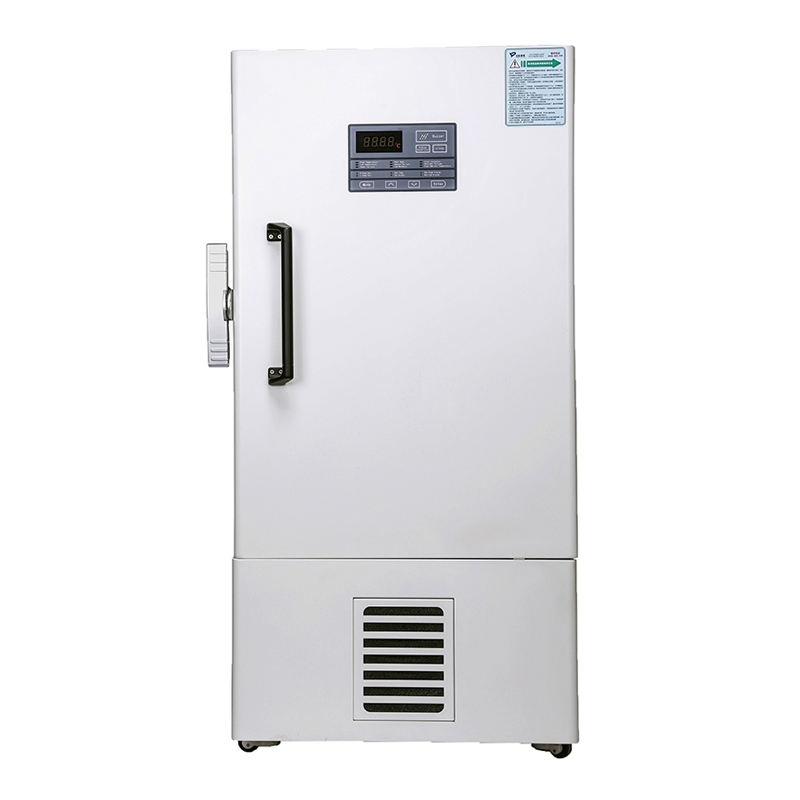

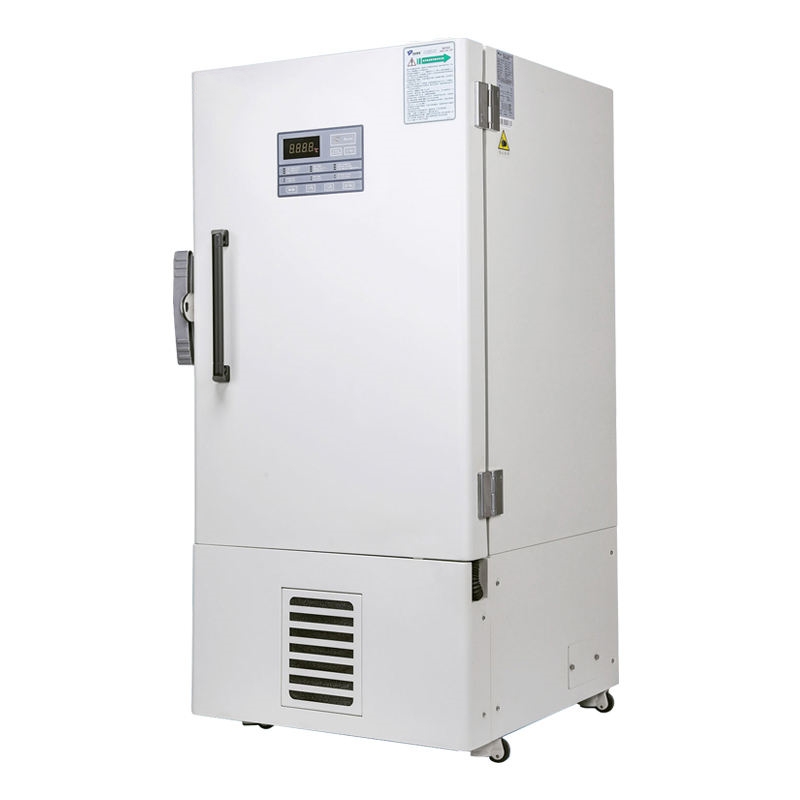

-86°C Ultra Low Temperature Freezer With Self-cascade System

This product is designed and manufactured for long-term storage of a variety of biological products, including viruses and bacteria. Red blood cells, white blood cells and skin. Applications in blood banks, hospitals, epidemic prevention services, research institutions, electronic laboratories and chemical factories, bioengineering institute and marine fisheries corporation.

Compliance: CE Certified
Customized: OEM/ODM
Package: Plywood case package

Products

6 Advantages Of OQT -86°C Ultra Low Temperature Freezer

-86°C Ultra Low Temperature Freezer With Self-cascade System detail - Digital display for temperature. Control panel for setting. With alarm light button, clearly to show and easy for attention.
1. Digital display for temperature. Control panel for setting. With alarm light button, clearly to show and easy for attention.

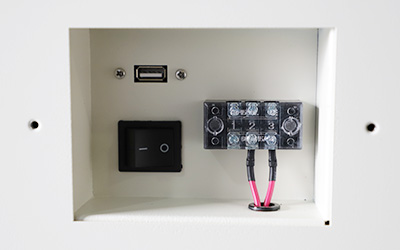

-86°C Ultra Low Temperature Freezer With Self-cascade System detail - Power switch with protector. USB interface.
2. Power switch with protector. USB interface.

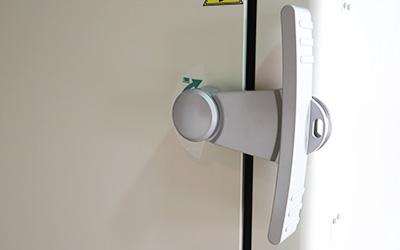

-86°C Ultra Low Temperature Freezer With Self-cascade System detail - Big door handle, easy to open. Can lock as per request.
3. Big door handle, easy to open. Can lock as per request.

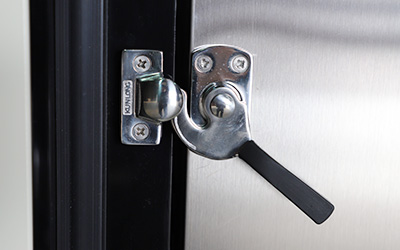

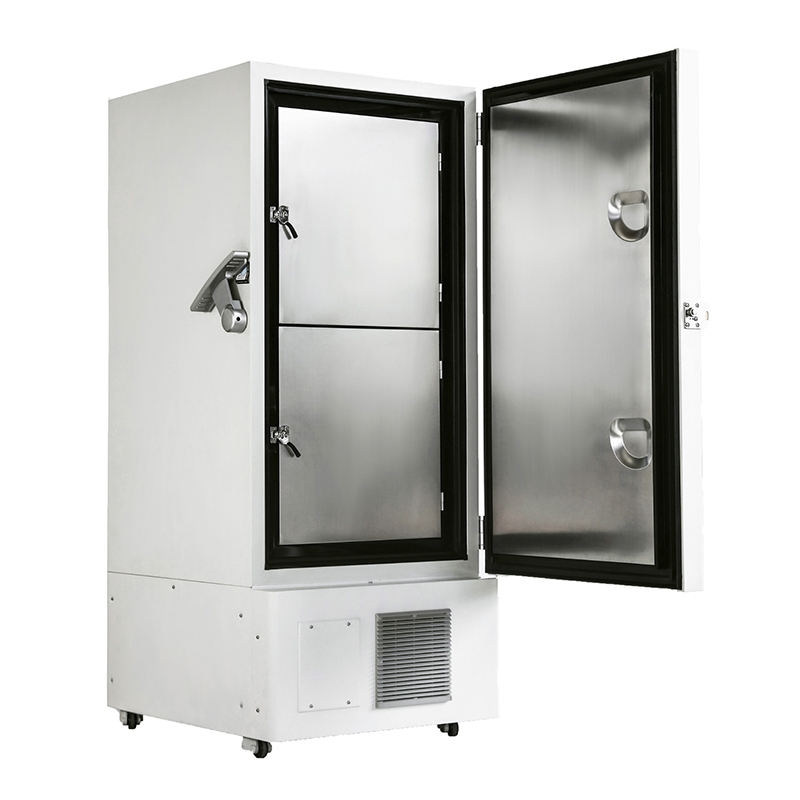

-86°C Ultra Low Temperature Freezer With Self-cascade System detail - Individual inner doors can be opened independently to minimize frost buildup inside the chamber. Stainless steel inner handle to ensure the door open conveniently even in the case of frost.
4. Individual inner doors can be opened independently to minimize frost buildup inside the chamber. Stainless steel inner handle to ensure the door open conveniently even in the case of frost.

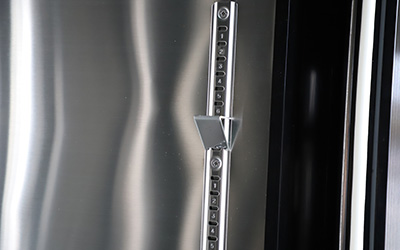

-86°C Ultra Low Temperature Freezer With Self-cascade System detail - Stainless steel trays height is adjustable, visible with digital holes, easy to adjust.
5. Stainless steel trays height is adjustable, visible with digital holes, easy to adjust.

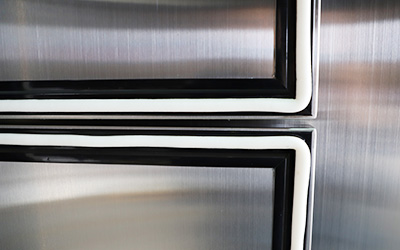

-86°C Ultra Low Temperature Freezer With Self-cascade System detail - Excellent door seal 5gasket seal, 4seals for out door, 1seal for inner door, which provides maximum protection against thermal intrusion.
6. Excellent door seal 5gasket seal, 4seals for out door, 1seal for inner door, which provides maximum protection against thermal intrusion.

DESCRIPTION

The self-cascade system’s microprocessor control system is designed to control cabinet space in the range of -40 ° C to -86 ° C in 1 ° C increments. High temperature and low temperature alarms can be set. Automatic cleaning of filter alarms and sensor error alarms. Adjustable shelf height, optional temperature recorder storage shelf and storage compartment.

FEATURES

1. The inner wall is made of high quality 304 stainless steel plate, which is durable and safe.

2. Accurately keep the internal temperature of the box accurate and stable, the temperature inside the box is adjustable from -40 to -86 °C

3. Fast cooling speed, low power consumption and large cooling capacity

4. Self-developed mixed working fluid can save energy by 50%

5. Standard test hole, USB interface and remote alarm interface

6. High temperature and low temperature alarm in the box, sound and light alarm, optional SMS notification and other alarm methods

7. Increased cooling rate by 20% and uniformity by 30%

8. A refrigeration circuit that doubles the system components compared to a conventional two-stage cascade system

9. Double-machine cascade refrigeration system using fluorine-free environmentally friendly alkane refrigerant, energy saving 50%

10.VIPIIPLUS second generation vacuum insulation board technology, the refrigerator has good insulation performance, designed for entering the elevator

11. Product structure optimized for biological sample libraries, providing storage space of up to 40,000 samples

12. When power is restored, the simultaneous start of all equipment will cause a large impact on the power grid, which may cause the circuit breaker to trip; the specially designed equipment delay start function for this case may make the equipment

13. The inner door is detachable for easy defrosting and cleaning

14. New door handle, additional padlock; test hole design; adjustable stainless steel shelf; detachable inner door for customer cleaning and defrosting

15. According to the user’s needs, the space can be adjusted according to the specifications of the stored items.

SPECIFICATIONS

ModelODF-86V58ODF-86V188EODF-86V340EODF-86V408EODF-86V588EODF-86V728EODF-86V838E
Shelf/drawer QTYStainless steel shelf/1Stainless steel shelf/2Stainless steel shelf/3Stainless steel shelf/3Stainless steel shelf/3Stainless steel shelf/3Stainless steel shelf/3
CoolingDirect coolingDirect coolingDirect coolingDirect coolingDirect coolingDirect coolingDirect cooling
DefrostManualManual  Manual  Manual  Manual  Manual  Manual
Refrigerant TypeR4001R4001R4001R4001R4001R4001R4001
Power Consumption(kWh/24h)6.0911.1713.0912.8216.0223.4419.98
Noise(db)50525250535055
Ambient   temperature(℃)10~32℃10~32℃10~32℃10~32℃10~32℃10~32℃10~32℃
Temperature   range(℃)-40~-86℃-40~-86℃-40~-86℃-40~-86℃-40~-86℃-40~-86℃-40~-86℃
Compressor brand/QTYSECOP/1CUBIGEL/1SECOP/1SECOP/1SECOP/2SECOP/2SECOP/2
SensorPTCPTCPTCPTCPTCPTCPTC
Temperature controllerMicroprocessorMicroprocessorMicroprocessorMicroprocessorMicroprocessorMicroprocessorMicroprocessor
DisplayDigital displayDigital display7″ LCD touch display7″ LCD touch display7″ LCD touch display7″ LCD touch display7″ LCD touch display
Voltage/frequency(V/Hz)220/50Hz220/50Hz220/50Hz220/50Hz220/50Hz220/50Hz220/50Hz
Power(W)442W660W810W890W1500W1400W1700W
Current(A)3.18A3.14A5.13A5.34A10.35A10.37A10.75A
Inside materialStainless steelStainless steelStainless steelStainless steelStainless steelStainless steelStainless steel
Outside materialPower coated steelPower coated steelPower coated steelPower coated steelPower coated steelPower coated steelPower coated steel
InsulationPURFPURFPURFPURFPURFPURFPURF
Capacity(L/cu.ft)58L/2188/6.63340/12408/14.40588/20.76728/25.7838/29.59
NT./GT.(kg)112/146194.5/220224.5/284.5235/279.5283/345.5316/392332/407
Exterior size(W*D*H)(mm)635*757*1212830×810×1607.5854×1006×1907872×1028×1945.5891×1155×1994.51248×975×1994.51179×1135×1994.5
Interior size(W*D*H)(mm)330*453*410465*465*830488*607*1140606*575*1180606*738*1310963×571×1350894*718*1310
Package size(W*D*H)(mm)730*845*1400915×928×1818935×1070×2128954×955×2094970×1138×21951320×970×21851270*1100*2185
CBM0.871.462.131.922.422.793.05
20GP/40GP/40HQ21/43/4312/26/2612/24/2412/24/2412/24/2410/21/218/18/18
Racks2(6X2)9(4X3)12(4X4)16(5X4,4X4)16(5X5)24(5*4/6*4)24(5X5)
Boxes (2 Inches)24108192288400504600
Samples(2ml)2400108001920028800400005040060000
High/low temperatureYYYYYYY
Power failureYYYYYYY
Abnormal voltageYYYYYYY
Sensor errorYYYYYYY
Filter screen checkYYYYYYY
Thermostat failureYYYYYYY
Low batteryYYYYYYY
Condenser cleanYYYYYYY
High ambient temperatureYYYYYYY
Door ajarYYYYYYY
Power failure backup system(alarm)72h72h72h72h72h72h72h
CastorYYYYYYY
Inside door1322222
Test hole QTY/diameter1/25MM1/25MM1/25MM1/25MM1/25MM1/25MM1/25MM
USB portYYYYYYY
Chart recorder////OptionalOptionalOptional
Data loggerOptionalOptionalOptionalOptionalOptionalOptionalOptional
Remote alarm portYYYYYYY
CO2 back up systemOptionalOptionalOptionalOptionalOptionalOptionalOptional
LN2 back up systemOptionalOptionalOptionalOptionalOptionalOptionalOptional
CertificationISO.CEISO.CEISO.CEISO.CEISO.CEISO.CEISO.CE

APPLICATION

  • Application of -86°C Ultra Low Temperature Freezer in Biomedical Research and Storage
    Biomedical Research and Storage
  • Application of -86°C Ultra Low Temperature Freezer in Pharmaceutical and Biotechnology
    Pharmaceutical and Biotechnology
  • Application of -86°C Ultra Low Temperature Freezer in Clinical Laboratories and Hospitals
    Clinical Laboratories and Hospitals
  • Application of -86°C Ultra Low Temperature Freezer in Industrial Storage
    Industrial Storage
