4 Advantages Of OQT -86°C Ultra Low Temperature Freezer

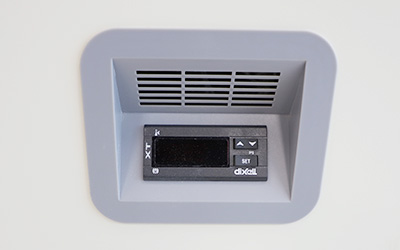

- 1. High light digital display. Temperature adjusted from -40°C ~ -86°C. High/low temperature alarm, the alarm temperature can be set as needed. Power switch with protector. USB interface.

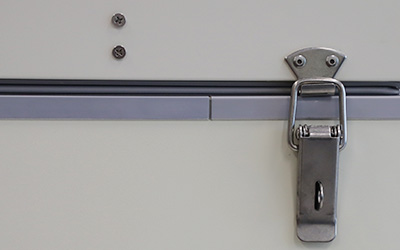

- 2. Safety door lock design to prevent abnormal door open.
- 3. High quality cold rolled steel plate, and the surface is treated with advance anti-corrosion phosphatic spraying process.

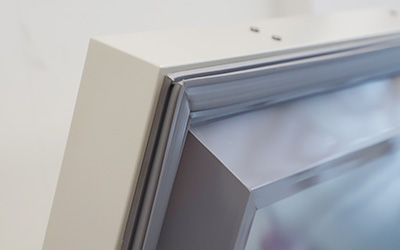

- 4. Excellent door seal, which provides maximum protection against thermal intrusion.
DESCRIPTION
This product is made of cold plate of the shell, the liner is made of high quality 304 stainless steel, durable, safe and reliable, with full copper tube evaporator, precise electronic temperature control and display, the precision reaches 0.1°C, safety door lock design, large screen digital display is convenient observe, standard test hole;
FEATURES

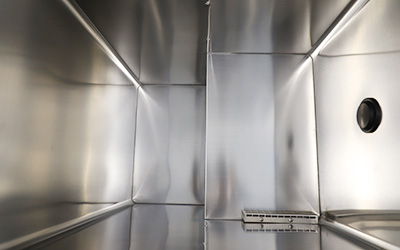

1. The inner wall is made of high quality 304 stainless steel plate, which is durable and safe
2. Accurately keep the internal temperature of the box accurate and stable, the temperature inside the box is adjustable from -40 to -86 °C
3. Fast cooling speed, low power consumption and large cooling capacity
4. Self-developed mixed working fluid can save energy by 50%
5. Standard test hole, USB interface and remote alarm interface
6. High temperature and low temperature alarm in the box, sound and light alarm, optional SMS notification and other alarm methods
7. Increased cooling rate by 20% and uniformity by 30%
8. A refrigeration circuit that doubles the system components compared to a conventional two-stage cascade system
SPECIFICATIONS
| Specifications | Model | ODF-86H105 | ODF-86H485 |
| Shelf/drawer QTY | / | / | |
| Cooling | Direct cooling | Direct cooling | |
| Defrost | Manual | Manual | |
| Refrigerant | Mixed-gas | Mixed-gas | |
| Power Consumption(kWh/24h) | 3.8 | 11.5 | |
| Noise（db) | 50 | 54.5 | |
| Ambient temperature（℃） | 10~32℃ | 10~32℃ | |
| Temperature range（℃） | -40~-86℃ | -40~-86℃ | |
| Cooling system | Compressor brand/QTY | Cubigel/1 | SECOP/1 |
| Sensor | PTC | PTC | |
| Temperature controller | Microprocessor | Microprocessor | |
| Display | Digital display | Digital display | |
| Power | Voltage/frequency（V/Hz) | 220/50Hz | 220/50Hz |
| Power（W) | 455W | 670W | |
| Current（A) | 2.2 | 3.57 | |
| Material | Inside material | Stainless steel | Stainless steel |
| Outside material | Color sprayed steel | Color sprayed steel | |
| Insulation | PURF | PURF | |
| Size | Capacity（L/cu.ft) | 105\3.70 | 485\17.12 |
| NT./GT.（kg) | 42/45 | 130/150 | |
| Exterior size(W*D*H)(mm) | 680×580×935 | 1695×840×962 | |
| Interior size(W*D*H)(mm) | 480×380×665 | 1455.5×525.2×674 | |
| Package size(W*D*H)(mm) | 770×705×1090 | 1765×900×1060 | |
| Frozen Racks | Racks | 4(11X1,6X1) | 30(11X1,6X1) |
| Boxes (2 Inches) | 34 | 30 | |
| Samples(2ml) | 3400 | 30000 | |
| Alarm | High/low temperature | Y | Y |
| Power failure | / | / | |
| Abnormal voltage | / | / | |
| Sensor error | Y | Y | |
| Filter screen check | / | / | |
| Thermostat failure | Y | Y | |
| Low battery | / | / | |
| Condenser clean | / | / | |
| High ambient temperature | / | / | |
| Door ajar | / | / | |
| Castor | Y | Y | |
| Inside door | / | / | |
| Test hole QTY/diameter | 1/25MM | 1/25MM | |
| USB port | / | / | |
| Chart recorder | Optional | Optional | |
| Data logger | Optional | Optional | |
| Power failure backup system(alarm) | / | / | |
| Remote alarm port | Y | Y | |
| CO2 back up system | Optional | Optional | |
| LN2 back up system | Optional | Optional | |
| Certification | Certification | ISO.CE | ISO.CE |
APPLICATION
Biomedical Research and Storage- Pharmaceutical and Biotechnology
- Clinical Laboratories and Hospitals
- Industrial Storage
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
