DESCRIPTION
Lyophilization or freeze drying is a process in which water is removed from a product after it is frozen and placed under a vacuum, allowing the ice to change directly from solid to vapor without passing through a liquid phase. The process consists of three separate, unique, and interdependent processes; freezing, primary drying (sublimation), and secondary drying (desorption).
FEATURES
1. In-situ pre-freeze drying.
2. Temperature adjustable, controllable production process.
3. 30 sections can be set, the freeze dryer can modify the program parameters during the running process, and record the vacuum drying curve and data online.
4. Touch screen, you can set the power-on password to display the drying curve.
5. The square tray is not easy to be deformed, easy to operate and easy to clean.

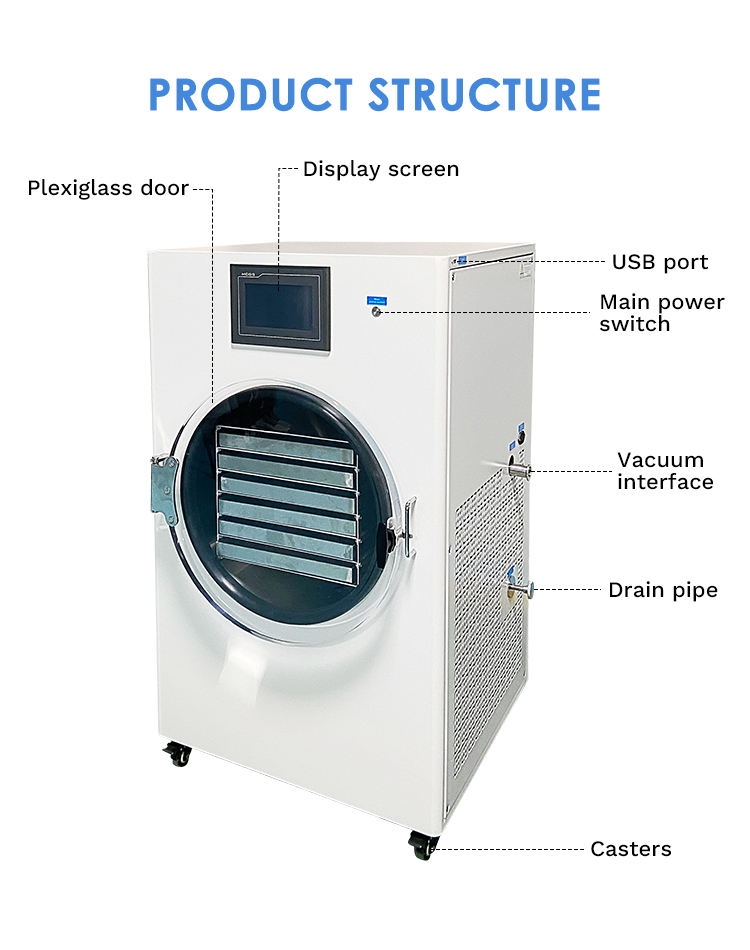

6. The drying chamber adopts a high light transmissive colorless transparent plexiglass door, which can clearly observe the change process of the material during the operation.
7. Optional configuration of the inflation valve, which can be filled with dry inert gas.
SPECIFICATIONS
| Model | OQT-8 |
| Freeze-dried Area(m²) | 0.8m² |
| Handling Capacity (Kg/Batch) | 8~10Kg/Batch |
| Cold Trap Temperature(℃) | ＜-35℃（No-load） |
| Maximum Ice Capacity/Water Catch (Kg) | 6.0kg |
| Layer Spacing(mm) | 45mm |
| Tray Size(mm) | 430mm*315*30mm 6Pcs |
| Ultimate Vacuum（Pa） | 15pa（No-load） |
| Vacuum Pump Type | 2XZ-4 |
| Pumping Speed(L/S) | 4L/S |
| Noise(dB) | 64dB |
| Power(W) | 2300W |
| Power Supply | 220V/50HZ or Custom |
| Weight (Kg) | 125Kg |
| Dimension(mm) | 640*680*1180mm |
APPLICATION
Food Industry- Pharmaceutical Industry
- Biotechnology and Research
- Floral and Herbal Industry
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
