DESCRIPTION

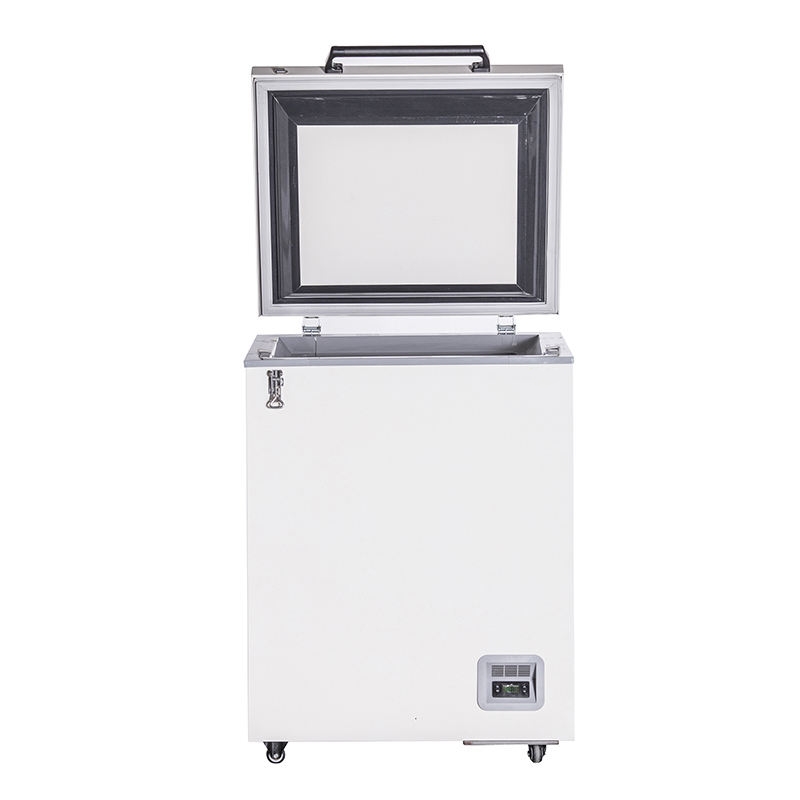

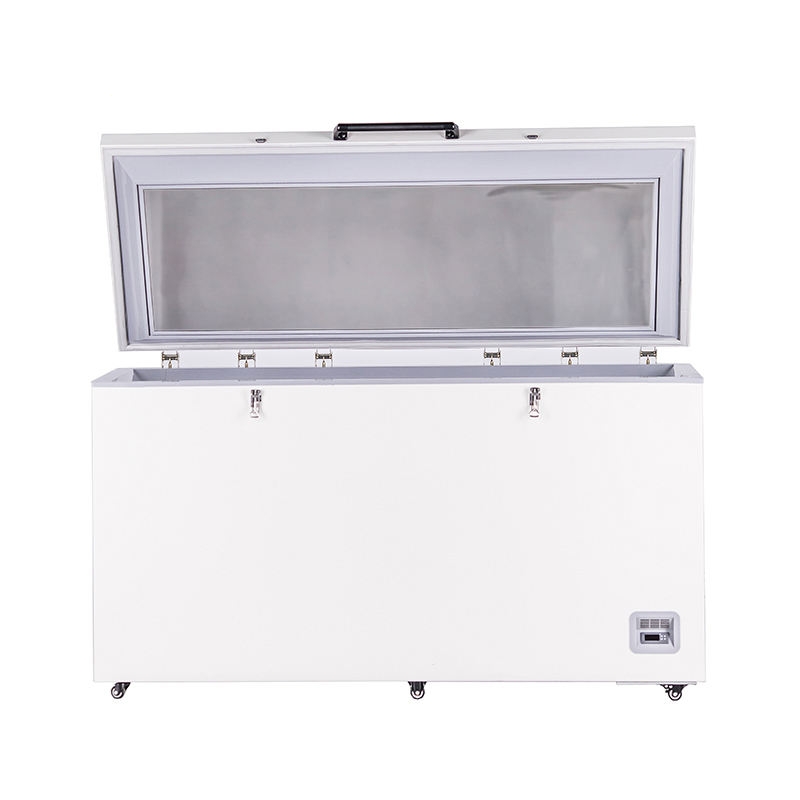

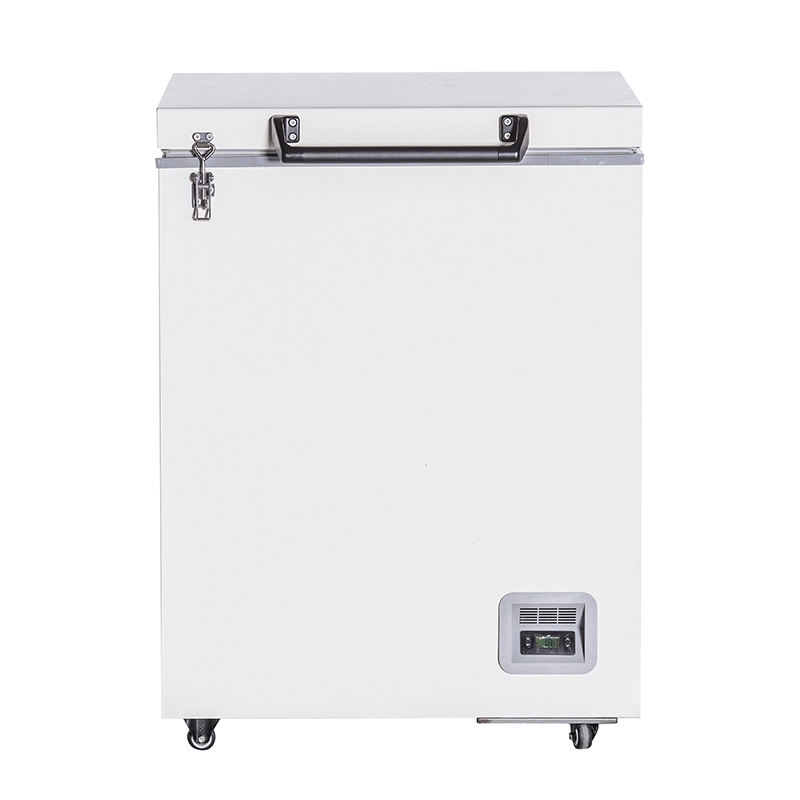

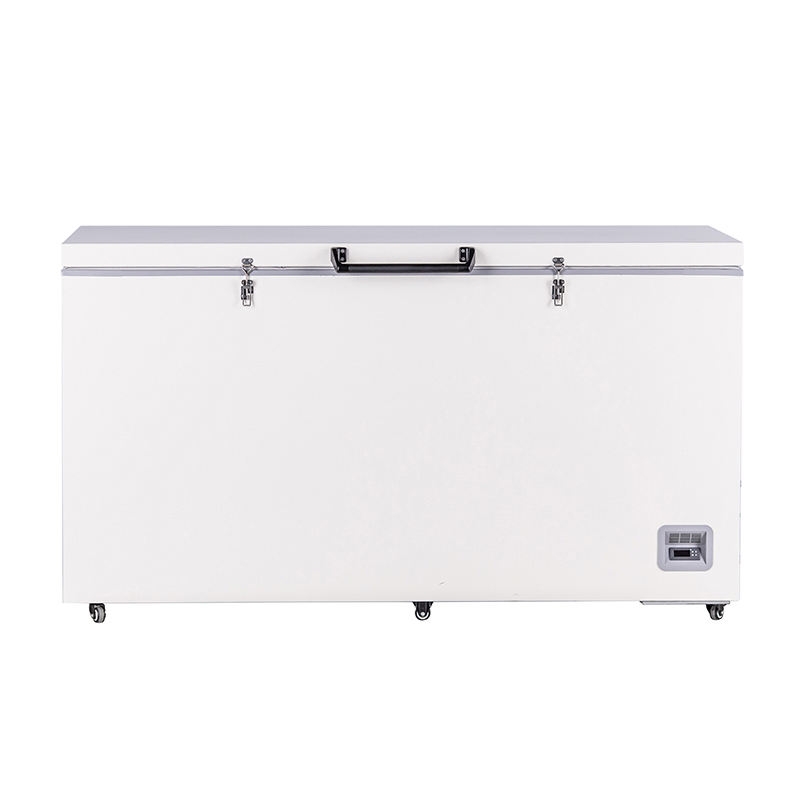

The -60°C Medical Freezer is the with universal casters,mobile more convenient Directional casters. High-end professional controller with full function.With Multiple malfunction alarms to detect high and low temperature , sensor error, power off, temperature controller malfunction, door ajar.
The shell of the cabinet is sprayed with cold plate, the inner wall is made of high quality 304 stainless steel, durable. The precision reaches 0.1 °C, the temperature inside the box is adjustable from -25°Cto -60°C. The password protection function prevents the operating parameters from being adjusted at will.
FEATURES
1. Adopt international famous brand high-precision temperature control system, the temperature inside the box is adjustable from -25°C to -60°C
2. Imported brand-name compressor, low noise, fluorine-free, environmentally-friendly and efficient refrigerant
3. Optimized single-stage self-cascading refrigeration system with fast cooling speed, low power consumption and large cooling capacity
4. The shell of the cabinet is sprayed with cold plate, and the inner wall is made of high quality 304 stainless steel, which is durable.
5. Password protection function to prevent arbitrary adjustment of operating parameters; power failure protection
6. With high and low temperature alarm, sensor fault alarm function, and sound buzzer and light flashing alarm mode 0° C
7. Efficient noise reduction structure design, leading the industry
8. Efficient heat exchange copper tube evaporator, air-cooled refrigeration system design, fast cooling speed, low power consumption
SPECIFICATIONS
|
Specifications |
Model | ODF-60V50 | ODF-60H105(C) | ODF-60H485(D) |
| Shelf/drawer | Shelves | / | / | |
| Cooling method | Direct cooling | Direct cooling | Direct cooling | |
| Defrost | Manual | Manual | Manual | |
| Refrigerant | CFC-Free | CFC-Free | CFC-Free | |
| Power consumption(kWh/24h) | 6.5 | 4.2 | 8.05 | |
| Noise（db) | 49.5 | 53 | 55 | |
| Ambient temperature（℃） | 10℃~32℃ | 10℃~32℃ | 10℃~32℃ | |
| Temperature range（℃） | -25℃~60℃ | -25℃~60℃ | -25℃~60℃ | |
| Cooling system | Compressor brand/QTY | SECOP/1 | CUBIGEL/1 | CUBIGEL/1 |
| Sensor | PTC | NTC | PTC | |
| Temperature controller | Microprocessor | Microprocessor | Microprocessor | |
| Display | Digital display | Digital display | Digital display | |
| Power | Voltage/Frequency（V/Hz) | 220/50Hz | 220/50Hz | 220/50Hz |
| Power（W) | 420W | 280W | 450W | |
| Current（A) | 2.8 | 1.85 | 2.85 | |
| Material | Inside material | Stainless steel | Stainless steel | Stainless steel |
| Outside material | Color sprayed steel | Color sprayed steel | Color sprayed steel | |
| Insulation | PURF | PURF | PURF | |
| Size | Capacity（L/cu.ft) | 50\1.76 | 105\3.70 | 485\17.12 |
| NT./GT.（kg) | 75/95 | 62/70 | 124/138.5 | |
| Exterior size(W*D*H)(mm) | 540×620×1145 | 680×580×935 | 1655×755×915 | |
| Interior size(W*D*H)(mm) | 361×429×406 | 480×380×665 | 1455×525×665 | |
| Package size(W*D*H)(mm) | 607*707*1253 | 740*685*1040 | 1750*900*1040 | |
| Alarm | High/low temperature | Y | Y | Y |
| Sensor error | Y | Y | Y | |
| Thermostat failure | Y | Y | Y | |
| Castor | Y | Y | Y | |
| Inside door | Y | / | / | |
| Test hole QTY/diameter | 1/18MM | 1/25MM | 1/25MM | |
| USB port | / | / | / | |
| Temperature recorder | Optional | Optional | Optional | |
| Power failure backup system(alarm) | / | / | / | |
| Other | Certification | ISO9001, 13485, 14 001, CE |
ISO9001, 3485, 14 001, CE |
ISO9001, 13485, 14 001, CE |
APPLICATION
Biomedical Research and Storage-
Pharmaceutical and Biotechnology
-
Clinical Laboratories and Hospitals
-
Industrial Storage
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
