DESCRIPTION

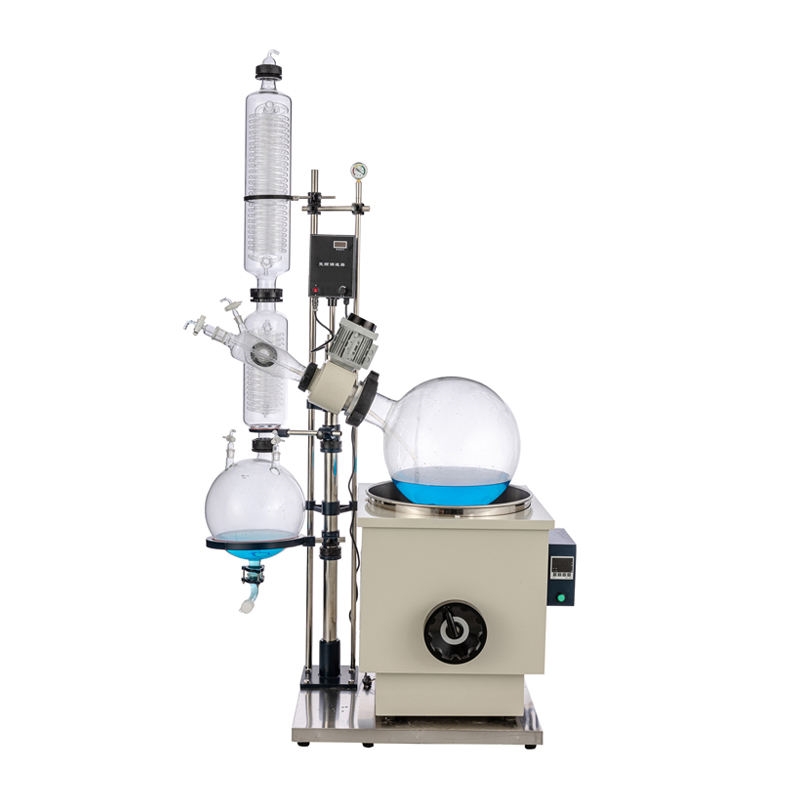

Rotary evaporator is the use of stepless speed control glass rotating bottle constant speed rotation, the material in the bottle wall to form a large area uniform film, and then by the intelligent constant temperature water bath on the rotating bottle of uniform heating, vacuum conditions, high-speed evaporation, Efficient glass condenser cooling, recovery in the collection bottle.
FEATURES
1. Using PTFE + fluorine rubber seal cover, to maintain a high vacuum degree. Gas-liquid separation, no reflow .
2. USES the main and secondary efficient double condenser to ensure high recovery rate.
3. Rotating bottle with nut connection, it is easy to load and unload.
4. There is tap valve under the collection bottle mouth, recycled solvent is very fast.
5. Feeding continuously.
6. Vacuum gauge is to make sure the best work vacuum degree can be adjusted for the low boiling point materials.
7. Water bath with digital and continuous temperature controlling.
8. Reasonable structure, special materials . The mechanical structure mainly use stainless steel and aluminum alloy parts, glass pieces are all made of high temperature resistant and high boron glass. Imported Electrical key-module. Rubber seal is easy to adopt the new international, making it easy for users to purchase and update.
SPECIFICATIONS
| Model | OQT-5002 |
| Voltage/Frequency | Rotation 220V/50HZ; Heating pot 380V/50HZ |
| Whole power | 8180W |
| Rotary power | 180W |
| Heating power | 8000W |
| Vacuum degree | 0.0095Mpa |
| Rotary flask volume | 50L Φ470mm/Φ125 flange port |
| Receiving flask volume | 20L Φ355mm/ upper with Φ60 flange port*24# standard port*down with Φ50 flange port |
| Rotary speed | 0-120rpm/min |
| Temp.cotrolling range | room temperature -180℃ |
| Temp. accuracy | ±1℃ |
| Flask lifting distance | 180mm |
| Condenser size | The main condensor Φ160*835H(mm) , upper with Φ60 flange port* down with Φ80 flange port The assisted condensor Φ160*530H(mm), upper with Φ80 flange * down with Φ60 flange* side with Φ60 flange |
| Condensation area | 1.44(0.95+0.49)㎡ |
| Air guide bottle | left with Φ40 standard port, upper with 19# standard port, side with Φ60 flange prot, right with Φ70 flange port |
| Charging valve | 40# standard plug valve, feed nozzle (pagoda-shape connectors) outer diameter 12mm |
| Multi-function port | 19# standard plug valve, glass nozzle (pagoda-shape connectors) outer diameter 12mm |
| Vacuum suction nozzle | Φ60 flange glass exhaustor, suction nozzle (pagoda-shape connectors) outer diameter 10mm |
| Condensing coil in and out circuation nozzle | Pagoda-shape connectors, outer diameter 16mm |
| Vent valve | 24#standard plug valve*2 vent nozzle（ (pagoda-shape connectors) outer diameter 12mm |
| Baiting valve | Φ50 flange port, side discharging nozzle(pagoda-shape connectors), outer diameter 20mm, 320mm from the floor |
| Pot bravery size | Φ550*320H（mm) about 76L |
| Overall dimensions (W*L*H) | 1330*730*2340mm |
| Net weight | 119.5kg(82+37.5) |
| Packing dimensions | 1420*820*720mm; 830*730*910mm, 1.39m³ |
| Packing weight | 186kg(100+86) |
APPLICATION
Chemical Laboratories-
Pharmaceutical Industry
-
Essential Oil Extraction
-
Cannabis Industry
-
Food and Beverage Industry
-
Environmental Analysis
-
Academic Research
