DESCRIPTION

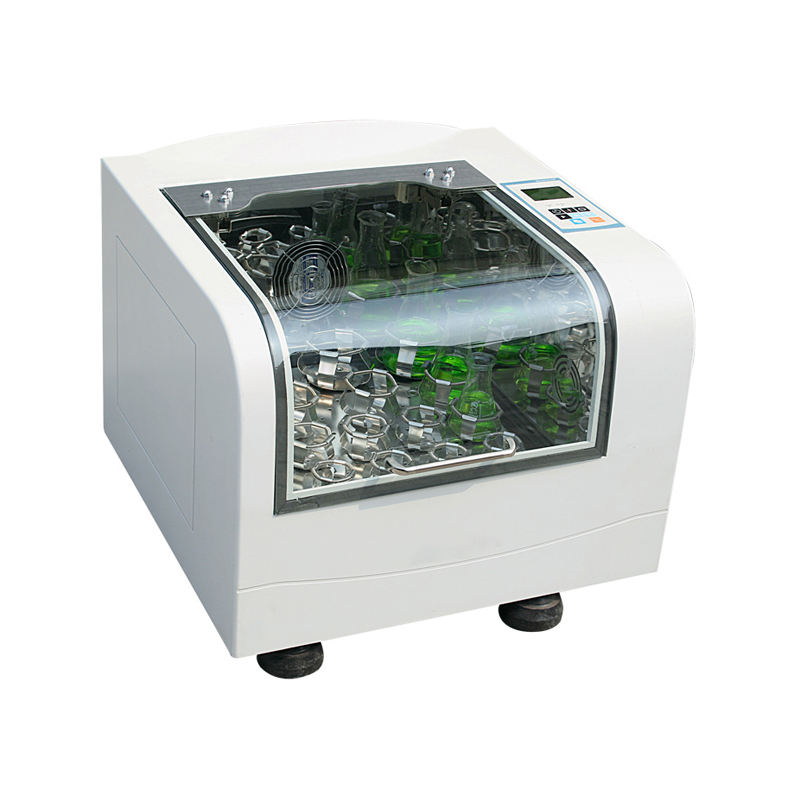

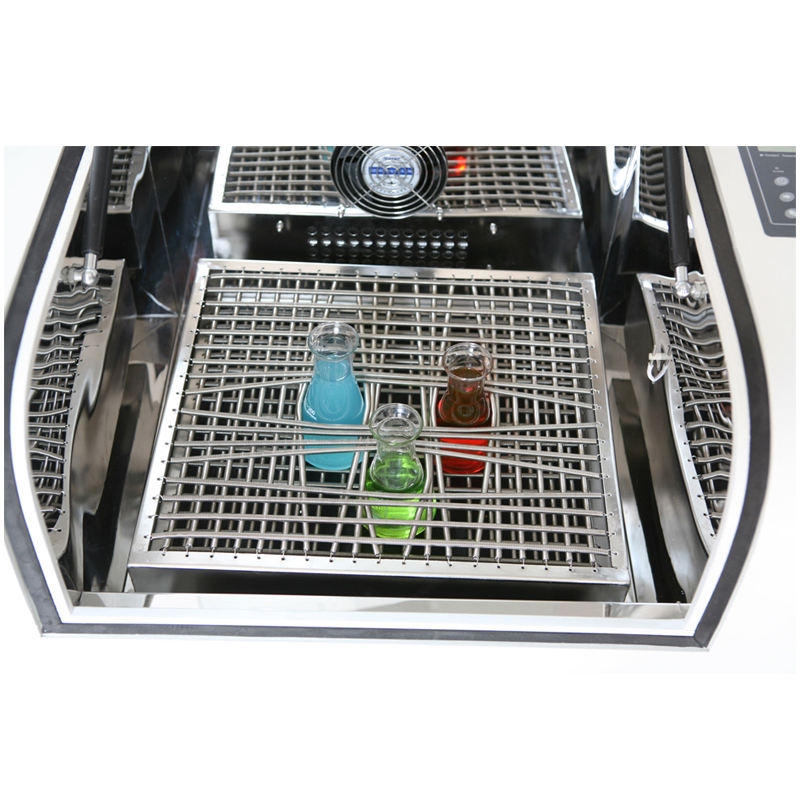

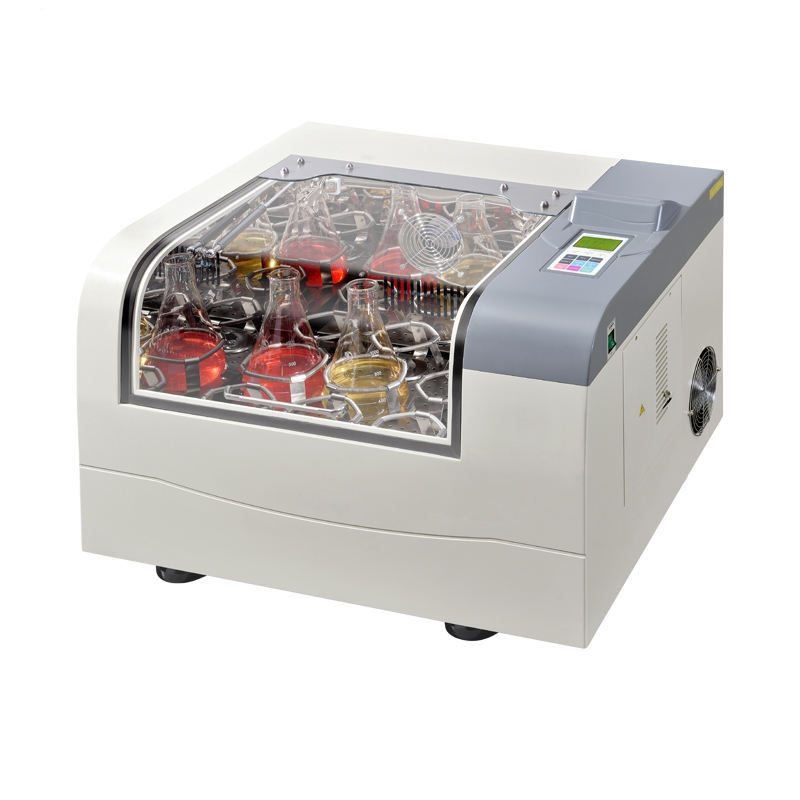

The constant temperature shaker has a stainless-steel universal clamp, digital display temperature control, stepless speed regulation and good thermal cycle function. It is a multi-purpose biochemical device, which is a plant, biology, microbiology, genetics, virus, environmental protection, medicine and other scientific research. education and production departments for precision culture preparation of indispensable laboratory equipment.
FEATURES
1. The original patented technology of the original single-axis balance drive balancing device (patent type: a single-axis drive rocking balance mechanism; patent number: ZL 2015 2 0624431.5), guarantees extremely low energy consumption and noise.
2. The oscillation frequency can be extended over a wide range to 30-400/600 rpm.
3. Intelligent sound and light alarm environment scanning microprocessor controller.

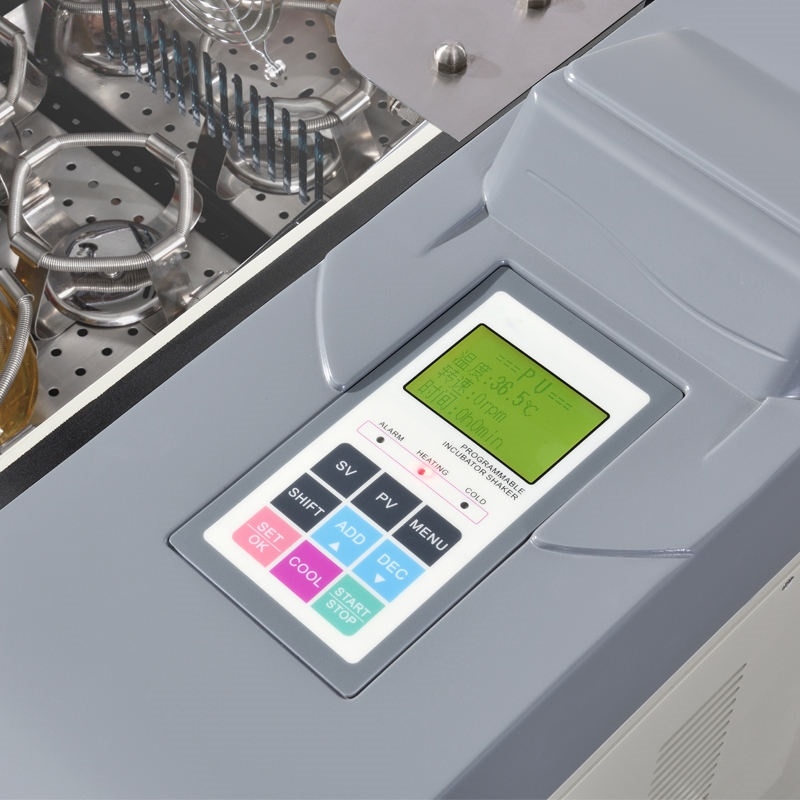

4. The LCD large-screen backlit LCD display double displays each set parameter and measured parameter.
5. A safe, fluorine-free refrigeration system that meets international environmental requirements.

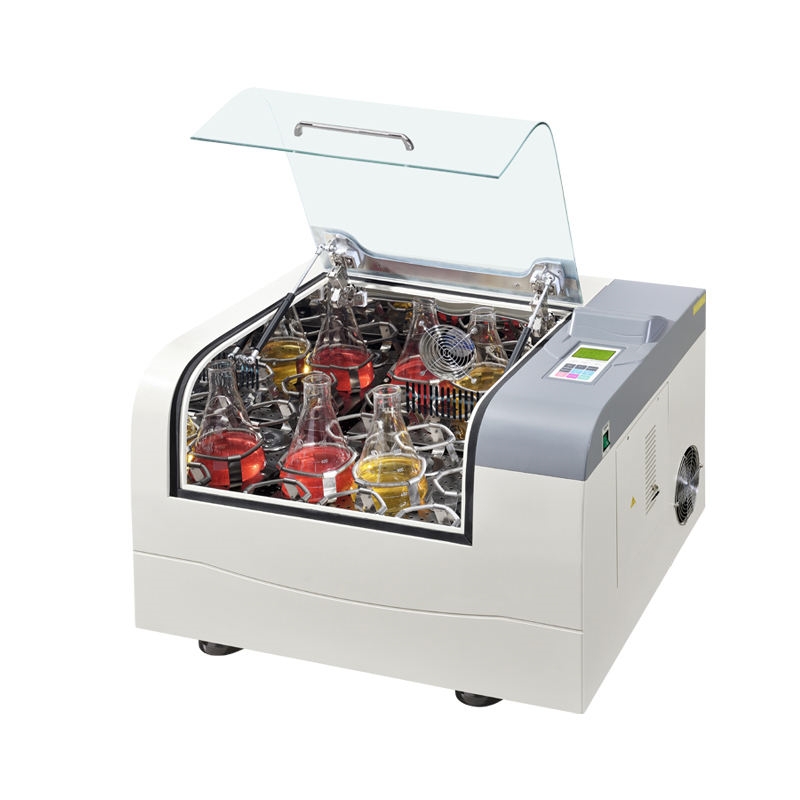

6. Elastic cylinder support is used to ensure smooth opening and closing of the cover.
7. Run the parameter memory function to avoid cumbersome operations.
8. AC induction long life motor design, wide speed regulation, constant torque, constant speed, no carbon brush, maintenance free.
9. Over-temperature sound and light alarm function, motor overheating, temperature out of control, abnormal over-temperature instrument automatically cut off their respective power supply.
10.With power-off recovery function, after the external power supply suddenly loses power and calls again, the device can automatically resume operation according to the original setting program.
11. The line that controls the acceleration ensures that the shaker is slowly started and smoothly accelerated to ensure the safety of the experimental samples.
12. Streamlined luxury style with auspicious design concept, ABS special engineering plastic case, large screen tempered hot bending glass window.
SPECIFICATIONS
| Model | OH-103B | OH-100B | OH-200B | |
| Control method | P.I.D(Microcomputer environment scanning micro processing chip) | |||
| Display method | LCD (Large screen LCD dual display) | |||
| Cyclic mode | Forced convection | |||
| Oscillation mode | Rotary oscillation | |||
| Drive mode | Single-axis balancing device (Chinese patent) | |||
| Environmental requirements | Temperature 25 ° C, humidity 20% -90% | |||
| Temperature control range | Room temperature +5℃-60℃ | 4-60℃ | ||
| Temperature accuracy | ±0.1℃ | |||
| Temperature uniformity | ±1℃ | |||
| Performance | Frequency Range | 30-400rpm | ||
| Rotation accuracy | ±1rpm | |||
| Pendulum amplitude | φ25mm | |||
| security function | Upper and lower temperature deviation alarm; upper- and lower-line speed deviation alarm, independent over-temperature protector; open door stop protection; leakage protection, chiller overload protection. | |||
| Accessory function | Speed storage, call recovery, parameter memory, temperature speed correction, clock display, room temperature / measured temperature double display. | |||
| Programming function | Repeat, step, eight-segment curve programming settings. | |||
| The refrigerant | – | – | CFC-Free (134A) fluorine-free safety refrigeration system | |
| Cooler | – | – | 118W | |
| Heater | 150W | 400W | 400W | |
| Timing range | 0-999.59h/ Sustainable | |||
| Standard sizes | Rocker size | 260*260(mm) | 400*370(mm) | 420*400(mm) |
| Number of rocking plates | one | |||
| Net weight | 31kg | 72kg | 100kg | |
| Gross weight | 54kg | 94kg | 132kg | |
| Inner cavity size | 360*340*280(mm) | 410*450*300(mm) | 460*500*350(mm) | |
| Dimensions | 440*419*420(mm) | 610*610*510(mm) | 700*740*560(mm) | |
| Package dimensions | 560*530*560(mm) | 740*710*530(mm) | 805*900*760(mm) | |
| Opening height | 746(mm) | 920(mm) | 990(mm) | |
| power | 280W | 490W | 580W | |
| Materia | Motor | 60W inverter motor | ||
| Inner cavity material | High quality imported stainless steel mirror panel | |||
| Outer box Materia | ABS special engineering plastic case | |||
APPLICATION
Microbiology and Cell Culture- Biochemical and Enzyme Research
- Chemical and Pharmaceutical Research
- Molecular Biology and Genetics
