DESCRIPTION

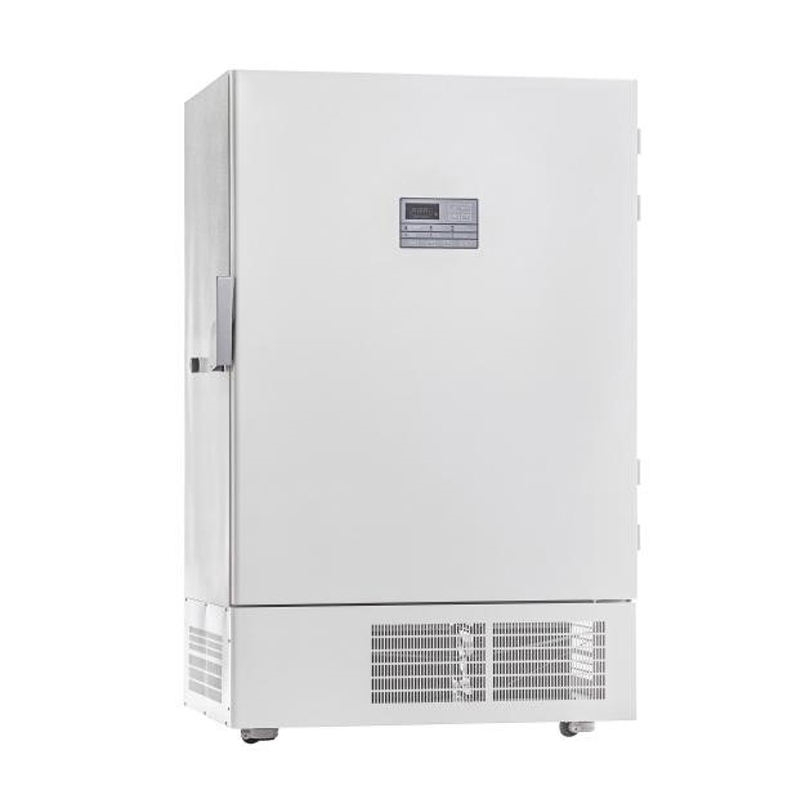

The -40°C Medical Freezer is Made of high density non-fluorinated polyurethane foam insulation. Independent inner door to avoid more cooling leaking out, and provide more stable inside temperature performance. The standard is equipped with a 25mm test hole.The wide voltage band is 187V~242V. With power failure protection, the startup delay feature protects the device from damage. The door lock is designed to prevent abnormal doors from opening. Equipped with a large screen for easy viewing Standard test hole.
FEATURES
1. The shell body is made of high quality cold-rolled steel plate, and the inner wall is made of anti-corrosion aluminum plate. It is durable, safe and reliable.
2. Direct cooling system, coiled evaporator with unique circulation system design to ensure uniformity and volatility, built-in side condenser
3. Optional monitoring module and special software for remote monitoring, remote SMS alarm
4. Silk tube evaporator design, fast cooling
5. The cabinet is equipped with a height-adjustable dip-coating net frame, and the temperature inside the box is more uniform.
6. Excellent cooling layout, adjustable temperature inside the box -10~-40°C
7. Standard test hole, safety door lock design
8. According to the user’s needs, the space can be adjusted according to the specifications of the stored items.
9. Energy-saving mute, independent fluorine-free environmentally friendly refrigerant, 100% chlorine-free
10. Double-layer door inside and outside, foaming door body, locking air-conditioning, strengthening insulation effect
SPECIFICATIONS
| Model | ODF-40V936 | ODF-40H105 | ODF-40H485 |
| Shelf/drawer | Shelves | N | N |
| Cooling method | Direct cooling | Direct cooling | Direct cooling |
| Defrost | Manual | Manual | Manual |
| Refrigerant | Mixed-gas | HC-R290 | HC-R290 |
| Power consumption(kWh/24h) | 14.5 | 1.65 | 3.45 |
| Noise（db) | 50 | 50 | 55 |
| Ambient temperature（℃） | 10~32℃ | 10~32℃ | 10~32℃ |
| Temperature range（℃） | -25~-40℃ | -10~40℃ | -10~40℃ |
| Compressor brand/QTY | SECOP/2 | CUBIGEL/1 | CUBIGEL/1 |
| Condenser | Copper tube and finned | Wire tube | Wire tube |
| Sensor | PTC | NTC | NTC |
| Temperature controller | Microprocessor | Microprocessor | Microprocessor |
| Display | Digital display | Digital display | Digital display |
| Voltage/frequency（V/Hz) | 220/50Hz | 220/50Hz | 220/50Hz |
| Power（W) | 1000W | 120W | 295W |
| Current（A) | 5.8 | 1.05 | 2.45 |
| Inside material | Stainless steel | Stainless steel | Stainless steel |
| Outside material | Color sprayed steel | Color sprayed steel | Color sprayed steel |
| Insulation | PURF | PURF | PURF |
| Capacity（L/cu.ft) | 936\33.05 | 105\3.70 | 485\17.12 |
| NT./GT.（kg) | 310\330 | 62\70 | 124\138 |
| Exterior size(W*D*H)(mm) | 1304×1000×2017 | 680×580×935 | 1655×755×915 |
| Interior size(W*D*H)(mm) | 1000×700×1335 | 480×380×665 | 1455×525×665 |
| Package size(W*D*H)(mm) | 1350×1080×2150 | 740×680×970 | 1750*875*1050 |
| High/low temperature | Y | Y | Y |
| Power failure | Y | Y | Y |
| Sensor error | Y | Y | Y |
| Filter screen check | Y | N | N |
| Temperature controller failure | Y | Y | Y |
| Low battery | Y | N | N |
| Condenser clean | Y | N | N |
| High ambient temperature | Y | N | N |
| Door ajar | Y | N | N |
| Foot | N | Y | Y |
| Castor | Y | Y | Y |
| Inside door | Y | N | N |
| Test hole QTY/diameter | 1/18MM | 1/25MM | Optional |
| USB port | Y | N | N |
| Power failure backup system(alarm) | 72h | N | N |
| Remote alarm port | Y | N | N |
| Certification | ISO9001, 13485, 14 001, CE |
ISO9001, 13485, 14 001, CE |
ISO9001, 13485, 14 001, CE |
APPLICATION
Biomedical Research and Storage-
Pharmaceutical and Biotechnology
-
Clinical Laboratories and Hospitals
-
Industrial Storage
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
