DESCRIPTION

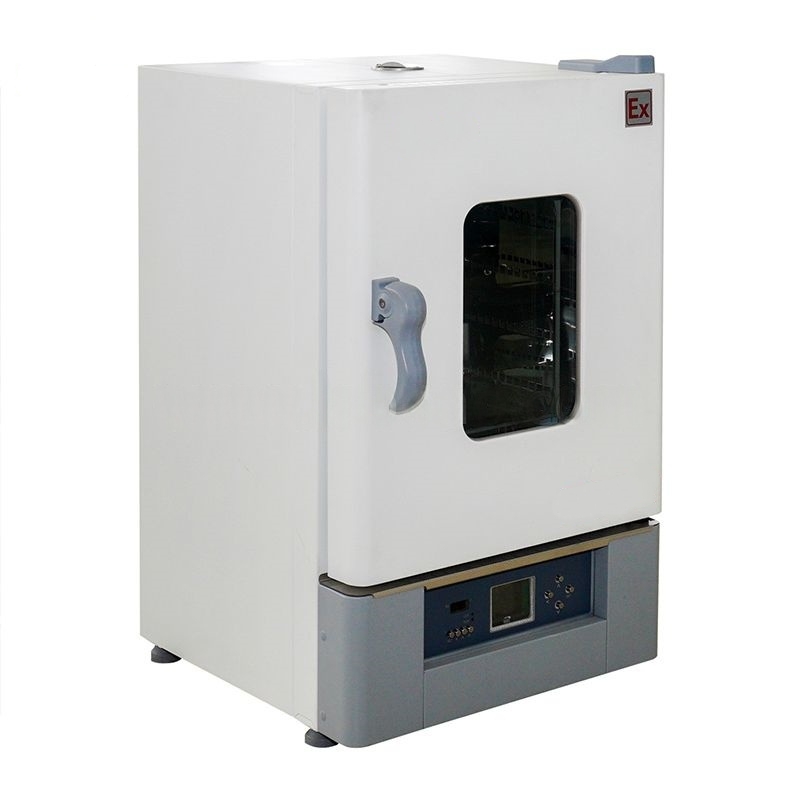

The shell of the explosion-proof blast drying oven is made of cold-rolled steel plate, the studio is made of mirror stainless steel plate, and silicon-aluminum fiber is used as insulation material. The interior of the working room is equipped with a grid-type stainless steel shelf, on which the test product can be placed for testing. The vertical double-air duct air jacket, the turbine centrifugal forced air supply, the temperature is uniform, and the structure is reasonable, and the appearance is beautiful and generous.
FEATURES
1. The cabinet adopts explosion-proof type, the equipment and electrical appliances adopt the overall explosion-proof technology, the explosion-proof control box, and centralized protection to prevent leakage of unsafe factors such as high temperature, static electricity, and sparks.
2. This equipment is mainly composed of drying box, explosion-proof heating system, explosion-proof electrical control and other parts
3. The inner tank of the box is made of mirror stainless steel, the outer shell is made of high-quality steel plate, which is beautiful and generous, and the inner tank is easy to clean
4. Vertical double air duct air jacket, centrifugal turbine forced air supply, uniform temperature.

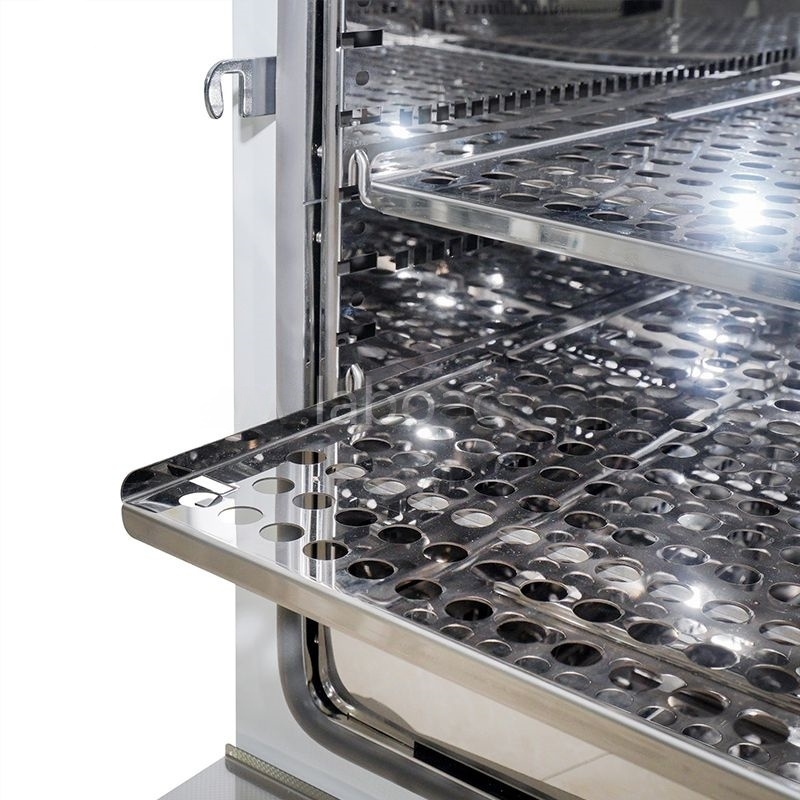

5. Pull-out tray shelf, convenient and quick sampling
6. LCD multi-data full-screen operation display, power failure memory
7. Convenient operation, fixed value operation, timing operation, automatic stop, scheduled start
8. Use explosion-proof 304 stainless steel heating tube for heating.

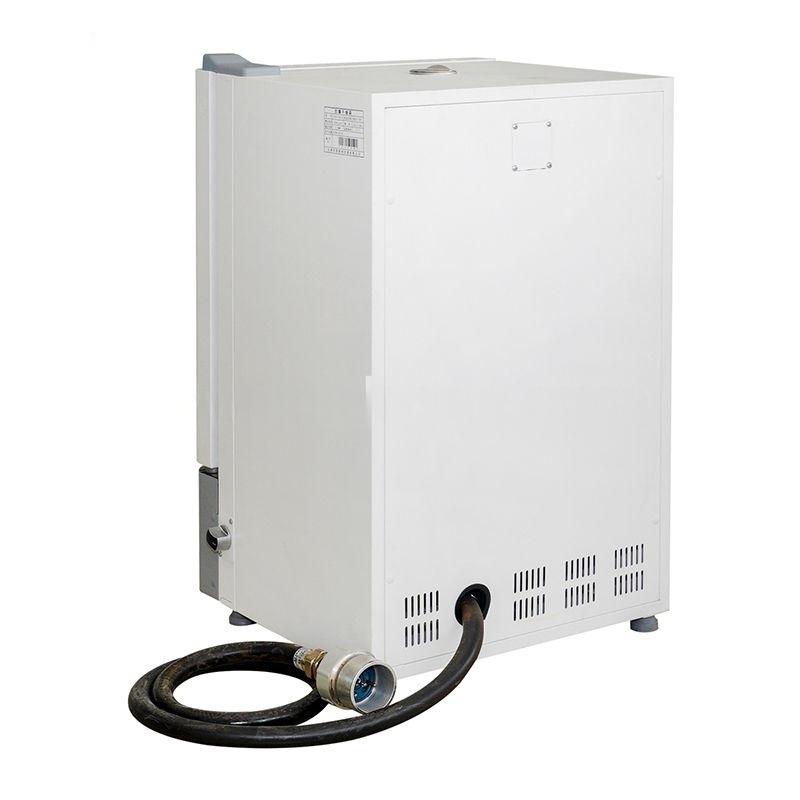

9. The exposed connecting wires are all made of explosion-proof flexible connecting tube sets, which can isolate static sparks and temperature leakage and ensure safety
10. Explosion-proof grade: Ex d e mb IIB T4 Gb
SPECIFICATIONS
| Model | OEX-65LG | OEX-125LG | OEX-230LG | OEX-625LG |
| Mode | Dual duct forced convection | Homogeneous air supply in the rear air duct | Double air duct rotary air supply | |
| Operating Temperature range | RT+10-300℃ | |||
| Temperature resolution | 0.1°C | |||
| Temperature fluctuation | ±1℃ | |||
| Temperature distribution accuracy | ±2.5% | |||
| Interior | Mirror stainless steel plate | |||
| Exterior | Cold-rolled steel plate with chemical-resistant coating on the surface | |||
| Insulation material | Aluminum silicate fiber | |||
| Heater | Stainless steel heating tube (explosion-proof qualification) | |||
| Power rating | 1.6kw | 2.3kw | 3kw | 5.75kw |
| Exhaust hole | Inner diameter 28mm*1, top | Inner diameter 28mm*2, top | ||
| Temp control method | LCD display dual column PID control | |||
| Tem setting method | Touch the explosion-proof four-button setting | |||
| Temp representation | Measured temperature display: LCD upper display; set temperature display; LCD lower display | |||
| Timer | 0-9999 minutes (hours), timing function can be selected (no, constant temperature timing, running timing | |||
| Operation function | Fixed value operation, timing operation, automatic stop, scheduled start. | |||
| External connection line protection | Explosion-proof flexible connecting pipe set (explosion-proof qualification) | |||
| Sensor | Explosion-proof armored PT100 (explosion-proof qualification) | |||
| Additional features | Deviation correction, menu key lock, power failure memory, overheating preventer | |||
| Explosion-proof grade | Ex de mb IIB T4 Gb | |||
| Inner size (W*L*H)(mm) | 400*360*450 | 500*450*550 | 600*500*750 | 660*760*1250 |
| Outer dimensions (mm) | 535*490*820 | 636*580*930 | 735*625*1220 | 900*960*1840 |
| Packing size(mm) | 970*620*960 | 760*700*1060 | 898*814*1347 | 1051*1060*1949 |
| Internal volume | 65L | 125L | 230L | 625L |
| Shelf load | 15kg | |||
| Shelf number | 9 | 13 | 17 | 7 |
| Shelf space | 35mm | 150mm | ||
| Power supply (50/60Hz) rated current | AC220/7.2A | AC220/10.5A | AC220/13.6A | AC380/8.7A |
| Net weight/gross weight (kg) | 43/49 | 60/66 | 84/100 | 113/137 |
| Partition | 2 pieces | |||
| Partition rack | 4 pieces | |||
| Optional | Explosion-proof grille, explosion-proof hinge, explosion-proof pressure relief door, explosion-proof seven-inch touch screen instrument (with curve and program function), explosion-proof mouse | |||
