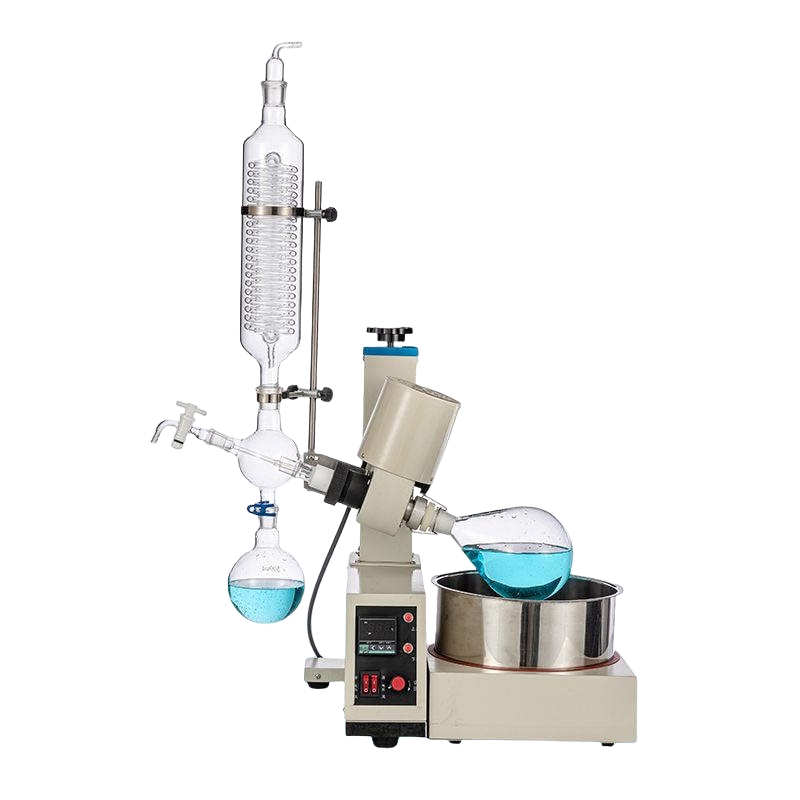

DESCRIPTION
Rotary evaporator is the necessary basic instrument for chemical industry, medicine industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration.
FEATURES
1. The parts in contact with materials are all made of high borosilicate glass (expansion coefficient 3.3) and polytetrafluoroethylene materials, which are stable in performance and difficult to chemically react with materials. 2. The main frame is made of cold plate anti-corrosion spray + aluminum alloy material, and the pot is made of stainless steel.
3. The sealing system adopts a combination of PTFE rotating shaft and fluorine rubber gasket for sealing.

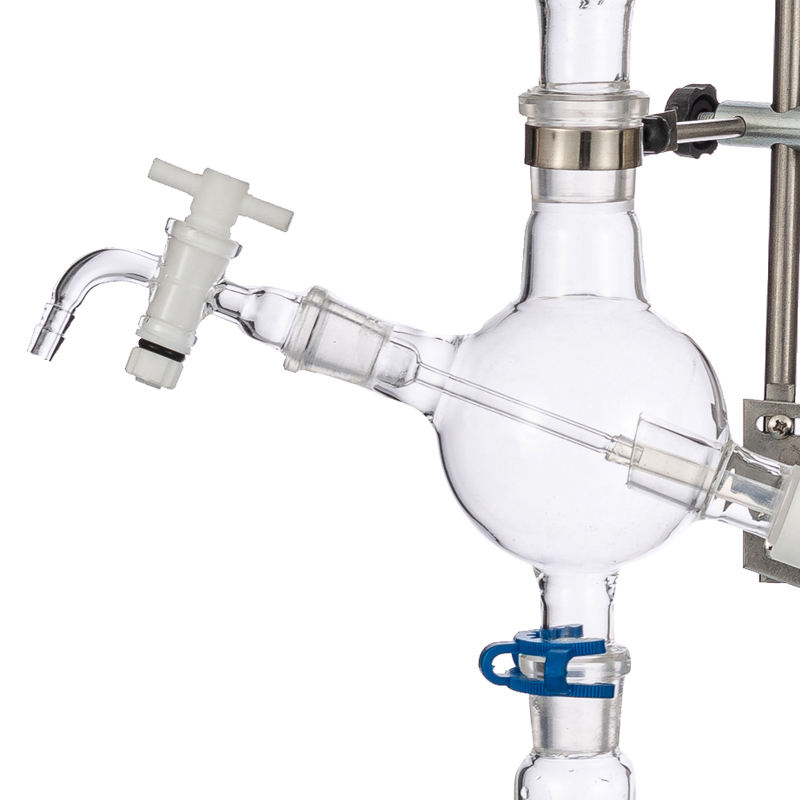

4. The piston-type feeding valve is sleeved with a polytetrafluoroethylene extension tube, which can continuously feed to the evaporating flask under vacuum.

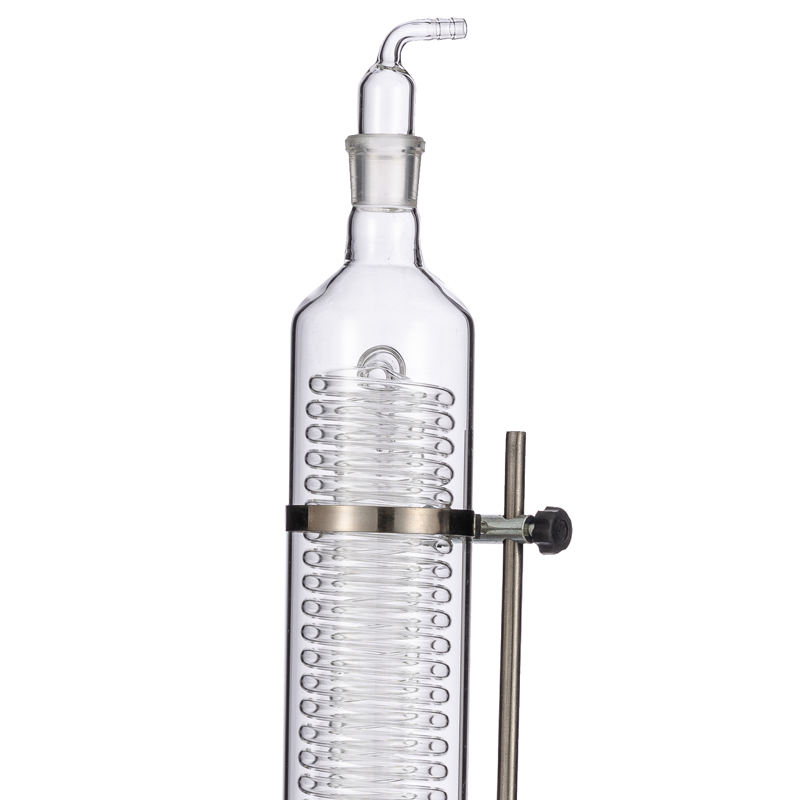

5. Vertical double-layer serpentine coil glass condenser.
6. Rotating and heating power switch control, double-joint tilt button (ON-OFF).
7. Electronic stepless speed regulation, fine-tuning through the knob.

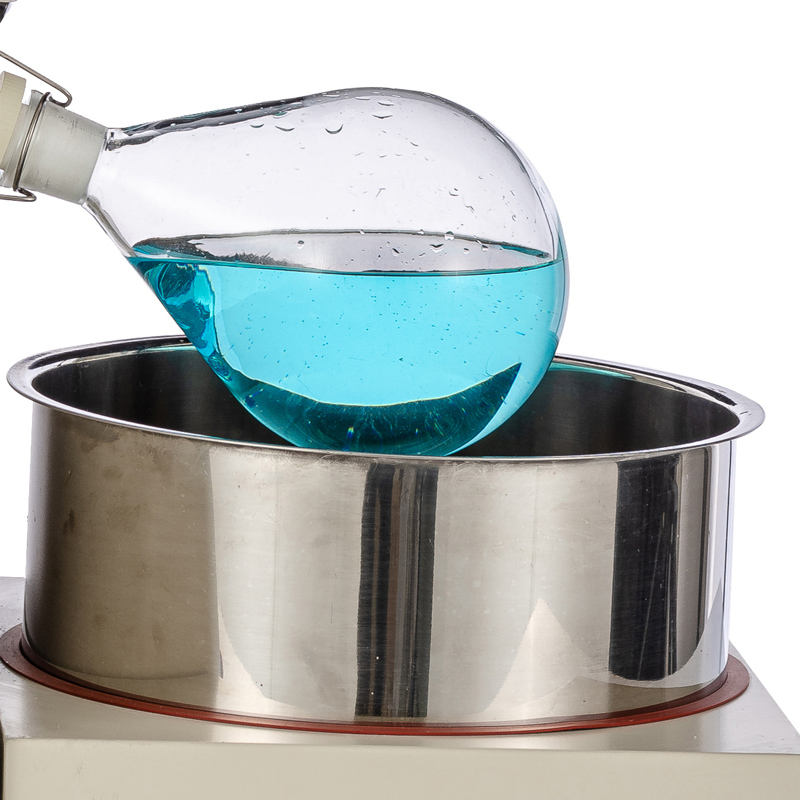

8. Digital display of temperature of constant temperature bath, Cu50 sensor + stainless steel probe at the bottom of the pot.
9. The main engine is operated by electric lifting, lifting and lowering buttons (it can also be lifted by hand wheel).
10. Rotating and heating double fuse safety protection.
SPECIFICATIONS
| Model | OQT-52B |
| Voltage/Frequency | 220V/50HZ |
| Whole power | 1045W |
| Rotary power | 30W |
| Lifting power | 15W 1/15 (Deceleration boost) |
| Heating power | 1000W |
| Vacuum degree | 0.0098Mpa |
| Rotary flask volume | Eggplant shape 1L,Φ131mm/24# standard port |
| Receiving flask volume | Round shape 0.5L,Φ105mm/24#standard port |
| Rotary speed | 0-120rpm/min |
| Temp.cotrolling range | room temperature -99℃ |
| Temp. accuracy | ±1℃ |
| Hosting lifting distance | 150mm |
| Condenser size | Φ85*450H(mm) Upper with 29#standard port and equipped with glass exhaustor, down with 29# standard plug |
| Condensation area | 0.17㎡ |
| Four-way bottle diameter | Upper with 29# standard port, down with 24# standard plug, left with 19# standard port, right with 24# standard plug |
| Charging valve | 19# standard plug valve, feed nozzle(pagoda-shape connectors),outer diameter 10mm |
| Vacuum suction nozzle | 29# standard plug valve, vacuum nozzle(pagoda-shape connectors), outer diameter 10mm |
| Condensing coil in and out circuation nozzle | Pagoda-shape connectors, outer diameter 12mm |
| Pot bravery size | Φ245*140H(mm) about 6.6L，5.5kg |
| Overall dimensions (W*L*H) | 660*440*(880-1030)mm |
| Net weight | 16.5kg |
| Packing dimensions | 600*460*470mm, 0.13m³ |
| Packing weight | 20kg |
APPLICATION
Chemical Laboratories-
Pharmaceutical Industry
-
Essential Oil Extraction
-
Cannabis Industry
-
Food and Beverage Industry
-
Environmental Analysis
-
Academic Research
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
