DESCRIPTION

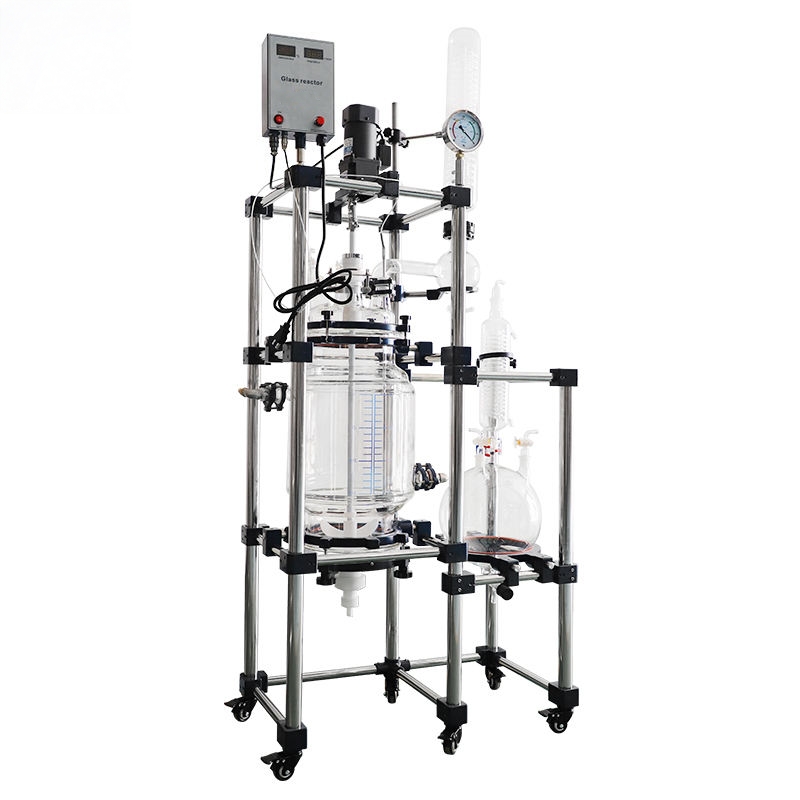

The crystallization filter reactor is s a commonly used biochemical instrument, which combines the functions of the reactor and the filter. It suitable for the chemical reaction and physical process under the synthesis, catalysis or other solid liquid of the laboratory / factory, so that one or more steps can be carried out in the same kettle (such as filtration after the completion of the reaction), thus reducing the drift of material measurement and reducing the transfer times of the reaction substrate. It is used in such fields as pharmaceuticals, peptide synthesis, tobacco research and so on.

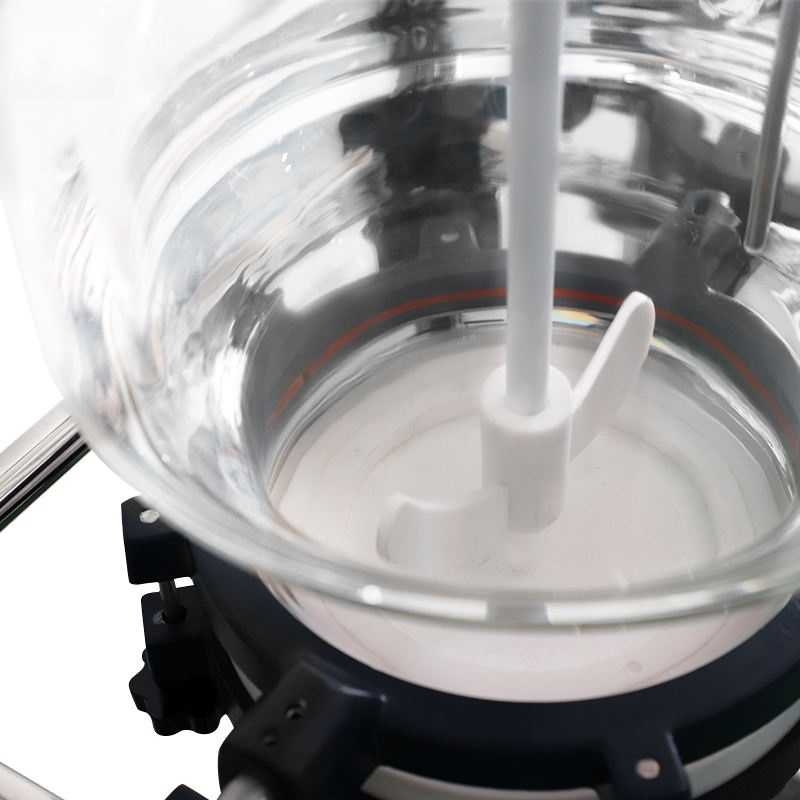

All contact parts are inert and hence allow the same equipment to be used with a wide range of chemicals and solvents . Appropriate filter is used to separate the solid particles of the slurry forming a filtered board. The filtrate drains to the bottom and can be collected from the bottom outlet valve . The filter cake can be easily removed from the bottom to wash PTFE filter.
It’s widely used in pharmaceutical and chemical industries, especially in drug synthesis, fine chemical industry, petrochemical process, new material synthesis, concentration, crystallization and other experiments.
FEATURES
1. The controller box is imported and easy to operate, digital display speed and temperature
2. Option filter plate, pore size from 0.1 to 200μm
3. All glass is GG17 borosilicate glass
4. Filter board can easy removeable
5. PTFE paddle or glass paddle for clients’ option
6. PTFE bottom value with no dead angle design
7. PTFE discharge valve, discharge completely and quickly, no leak/pollution to the solvent.
8. PTFE and special rubber compound seal, can withstand different solvents and maintain high vacuum degree.
9. Stainless steel bracket system, easy to disassemble
10. Customized service according to customers’ needs
SPECIFICATIONS
| Model | OQT-20L | OQT-30L |
| Material capacity | 20L | 30L |
| Jacket capacity | 5L | 8L |

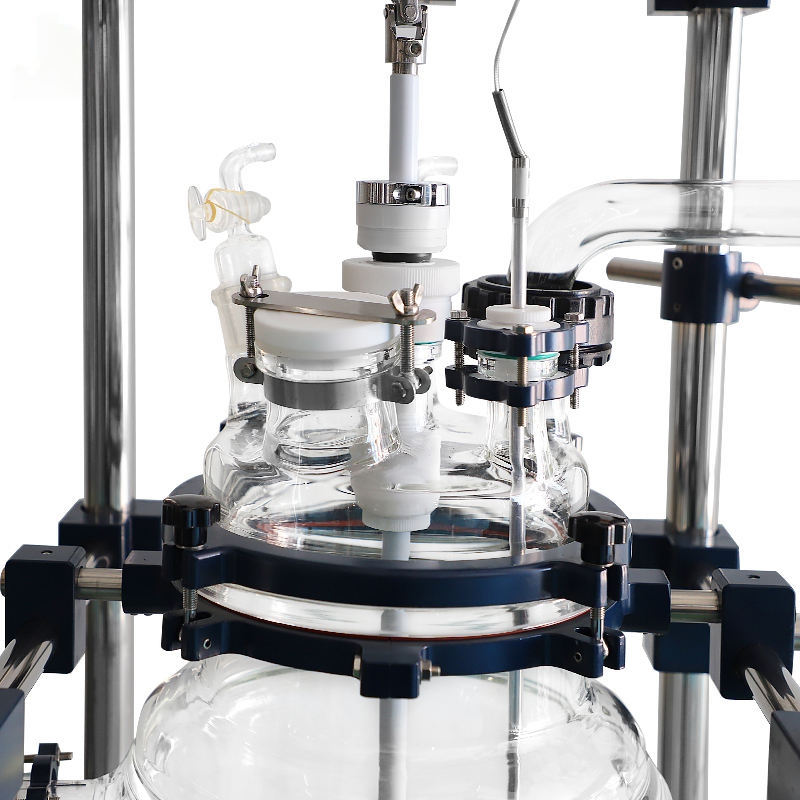

| Number of lid openings | 6(stir port, temperature measure port, liquid port, solid port, vacuum port, spare port) | |
| PTFE mixing paddle | Single layer push type | |
| Motor speed | 0-400rpm | |
| Speed mode | Frequency | |
| temperature display | Digital Display | |
| Discharge valve | PTFE core three-way valve can pass hydrogen | |
| Filter chassis | Removable PTFE body | |
| Filter plate | Imported material PTFE core | |
| Filter diameter | 197mm | |
| Sand core aperture | 40-60μm optional | |
| Liquid feed valve | PTFE three-way valve | |
| Sealing method | Self-lubricating mechanical seal | |
| Use environment temperature | 5℃~40℃ | |
| Size(L*W*H) | 520*520*1800mm | |
| Voltage | 220V/50Hz (can be customized) | |
| Optional | 1. Spray device(2 can be used to clean the sign body without dead angle at 360° through negative pressure)
2. Explosion-proof motors 3. Explosion-proof inverter |
|
APPLICATION
Chemical Synthesis-
Pharmaceutical Production
-
Petrochemical Industry
-
Material Science
-
Food and Beverage Industry
-
Environmental Analysis
-
Academic Research
-
Biochemical Engineering
