6 Advantages Of OQT Single Layer Glass Reactor

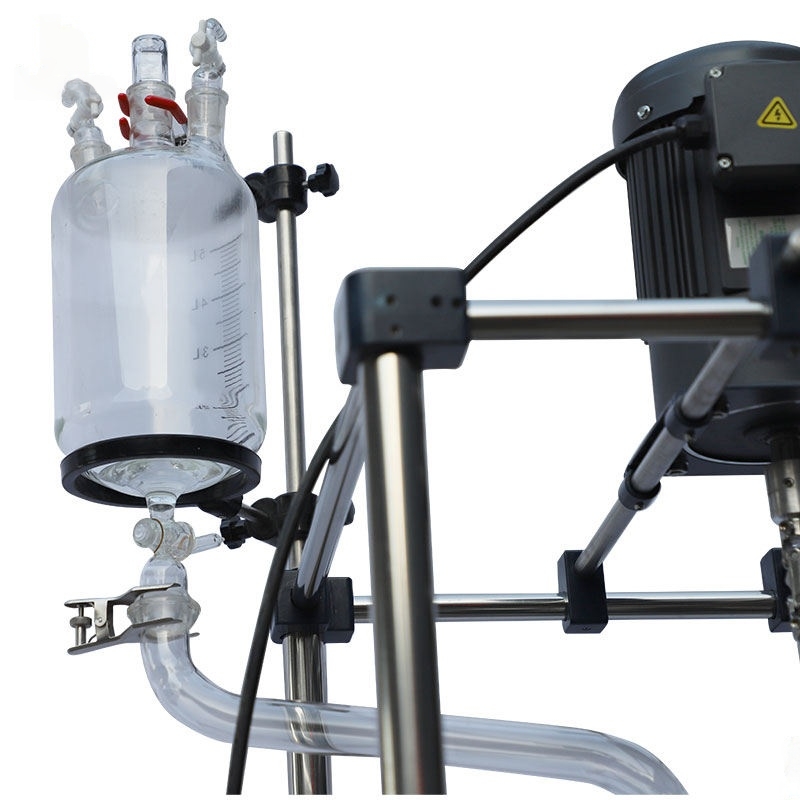

- 1. 5L volume feeding tank, with air release valve, can feed liquid continuously.

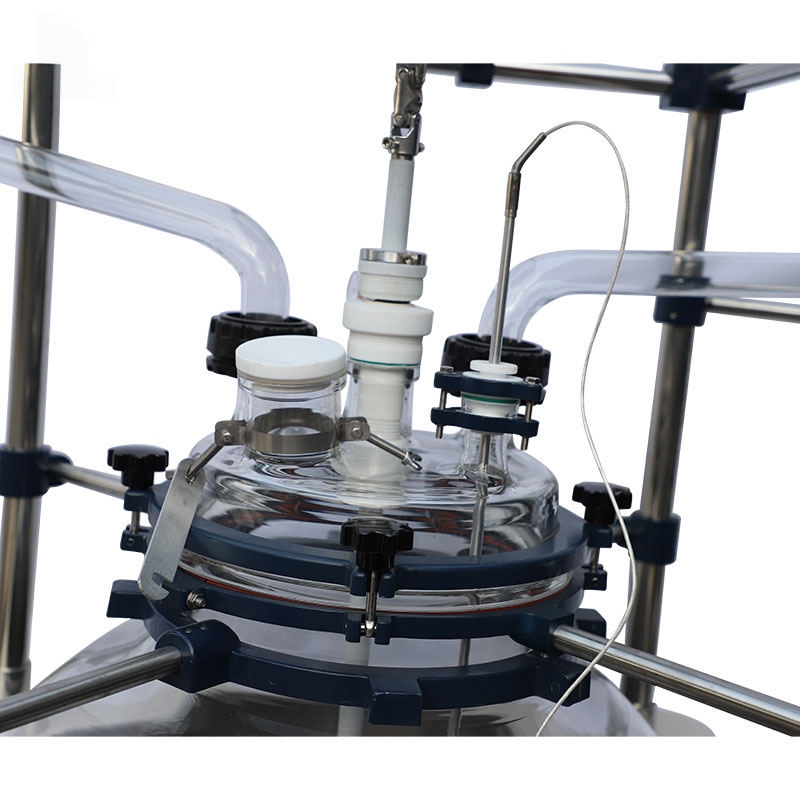

- 2. Total 6ports on reaction cap, stirring, temperature sensor, solid feeding, air release, liquid feeding, reflux.
- 3. Receiving flask with 10L volume, with air release valve and discharge valve.
- 4. Max temperature can reach to 200°C of heating bath.

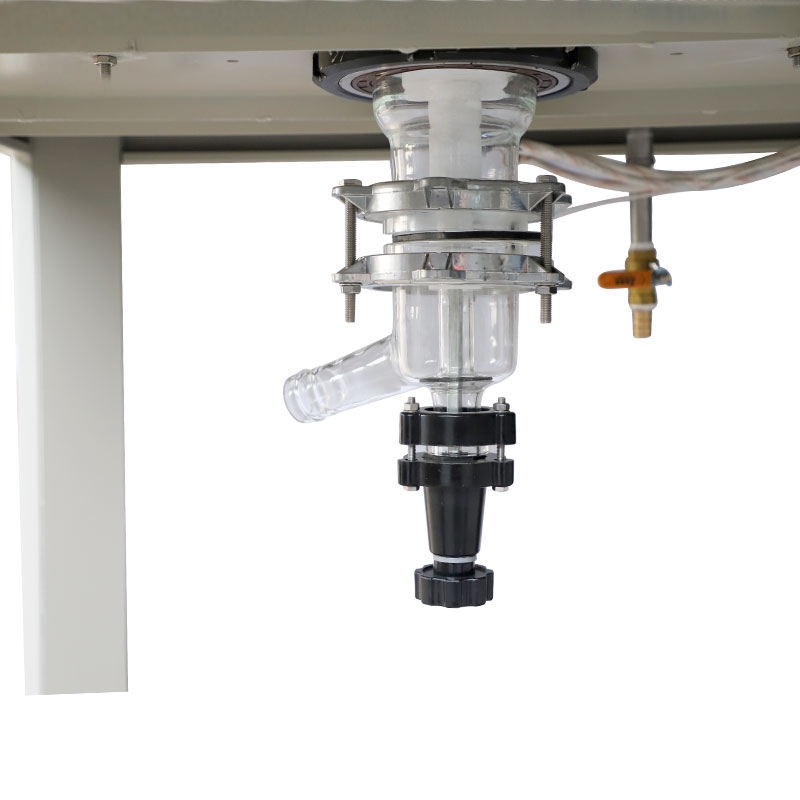

- 5. Discharge valve is glass material with PTFE sealing, which is anti-corrosion.
- 6. Oil vacuum meter, anti-vibration during stirring.
DESCRIPTION

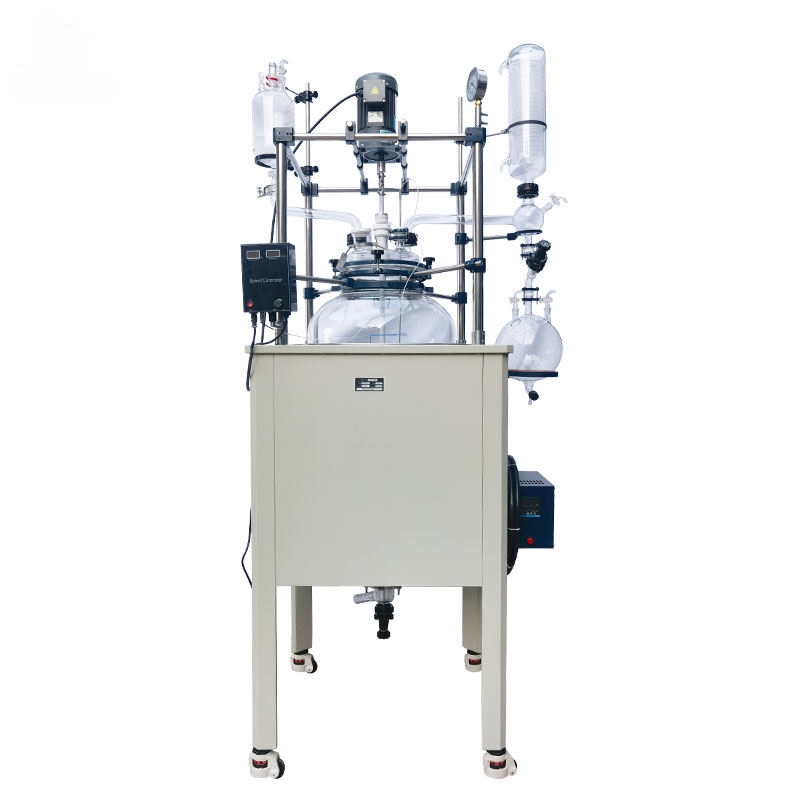

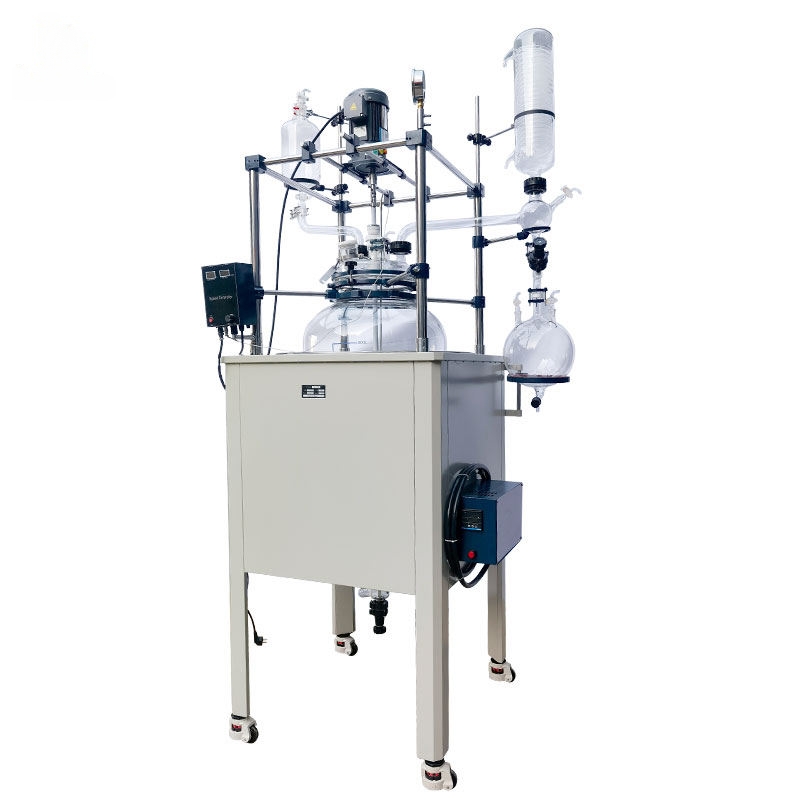

Single glass reactor inner placed reaction solvent which can be stirred, single layer glass reaction kettle is heated by computer control oil bath or electric heating. At the same time, it can be worked at atmospheric pressure or vacuum state, to control the reaction solution reflux and distillation, it is the ideal equipment for modern synthesis chemical, biological pharmaceuticals and making new materials, used for preparation experiment and production equipment.
FEATURES
1. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;
2. Supporting glass using GG3.3 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;
3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;
4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;
5. Casters with brake fixed, it is convenient and reliable for mobile use;
6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;
7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;
8. Integral structure is scientific design and beautiful appearance, convenient for operation;
9. Explosion-proof series available.
( We can add the cooling coil and an anti-explosion device according to user’s needs)
SPECIFICATIONS
| Model | OQT-200F | |
| Kettle volume | 200L tubular | |
| Voltage/frequency | Stirring 220V/50HZ, heating pot 380V/50HZ | |
| Stirring power | 750W， 1/5 | |
| Heating power | 12KW | |
| Stirring speed | 0-280rpm/min | |
| Bath temperature range | room temperature to 180℃ | |
| Temperature accuracy | ±1℃ | |
| Vacuum degree | 0.098Mpa | |
| Kettle size | Φ340mm | |
| 6ports of the cover | Stirring port | Φ60mm flange port |
| Condenser reflux port | 50# ball mill port | |
| Constant pressure funnel port | 50# ball mill port | |
| Relief port | 34# standard port | |
| Temperature measuring port | Φ45 flange port | |
| Solid feeding port | Φ80mm flange port , inner diameter Φ60mm matched with PTFE cover | |
| Stirring paddle | Φ20*1300H(mm), leafing 240mm | |
| Condenser size | Φ160*600H(mm)，down with Φ60 flange port | |
| Condenser area | 0.95㎡ | |
| Reflux elbow | upper with Φ60 flange port，left with 50# ball mill plug，right with 24# standard port , matched with functional valve | |
| Adding dropwise bottle | 5L tubular，upper with 29# standard port vent valve*2, 34# standard port matched with glass plug | |
| Receiving bottle | 10L，upper with 50# ball mill port，24# standard port vent valve*2, down matched with glass plug | |
| Relief valve | 34# standard plug valve，padoga connector,outer diameter 12mm | |
| Baiting valve | Φ80 flange port，Φ33mm baiting port，inclined discharged port (pagoda connector) Φ34mm, from floor 350mm | |
| Vacuum suction nozzle | padoga connector,outer diameter 12mm | |
| In and out circulation nozzle of condenser coil | padoga connector,outer diameter 15mm | |
| Pot bravery dimension | Φ700*800H(mm) | |
| Overall dimension (W*L*H) | ||
| Net weight | 178kg | |
| Packing dimension | 2310*860*1195mm, 2.37m³ | |
| Packing weight | 241kg | |
