DESCRIPTION

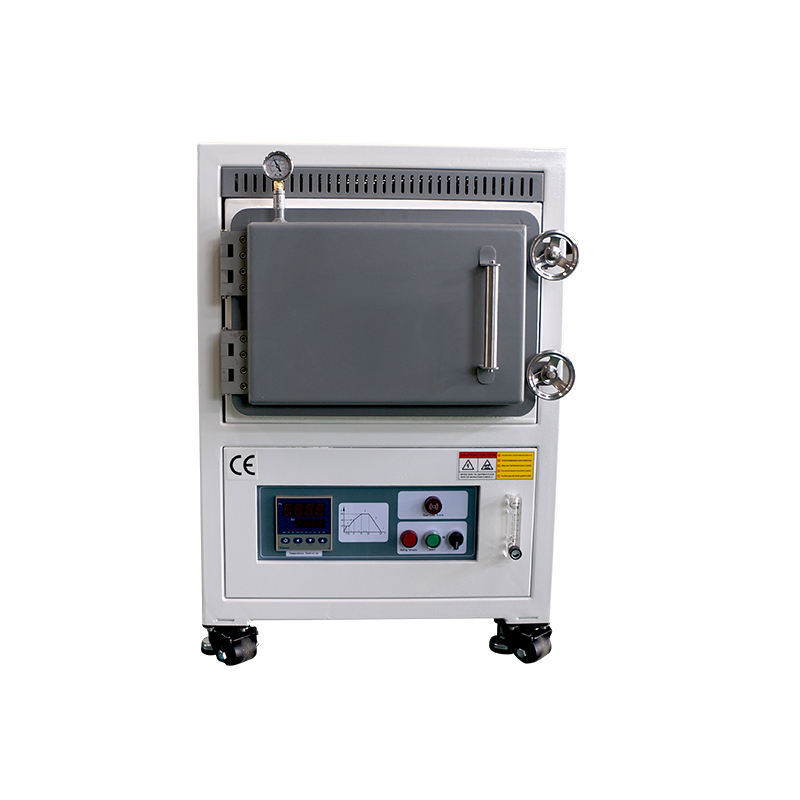

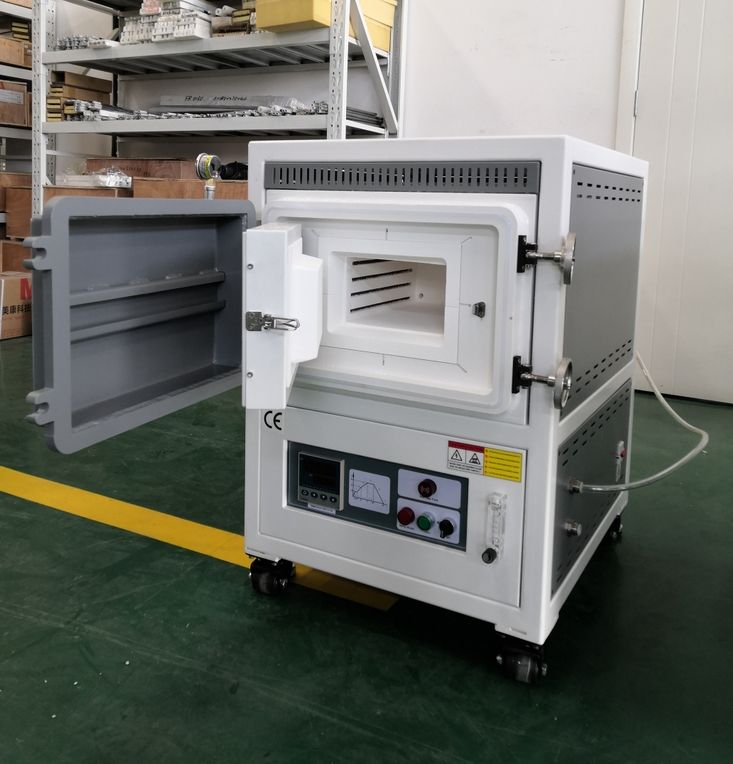

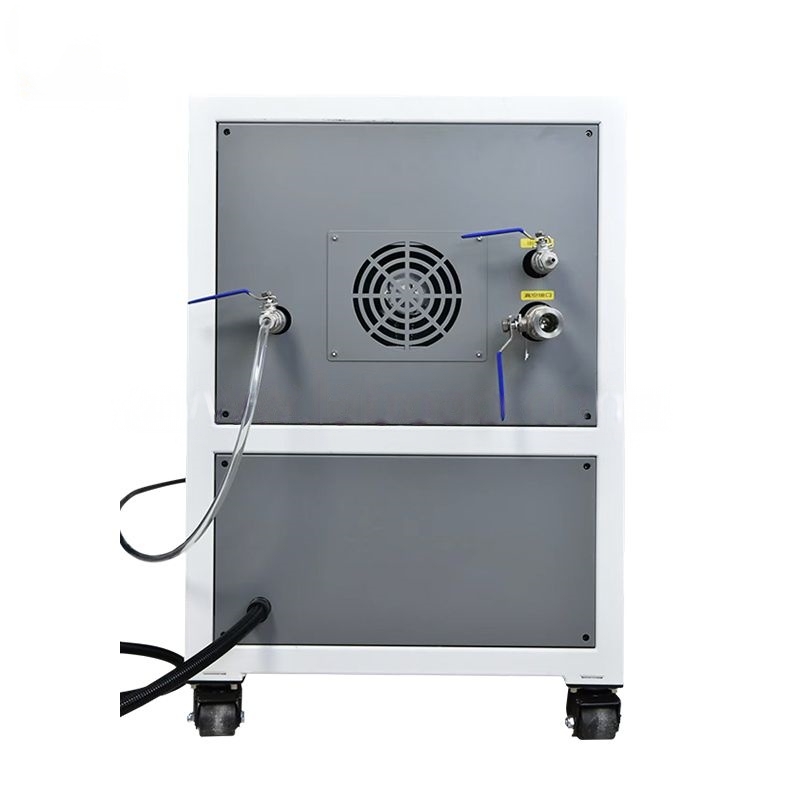

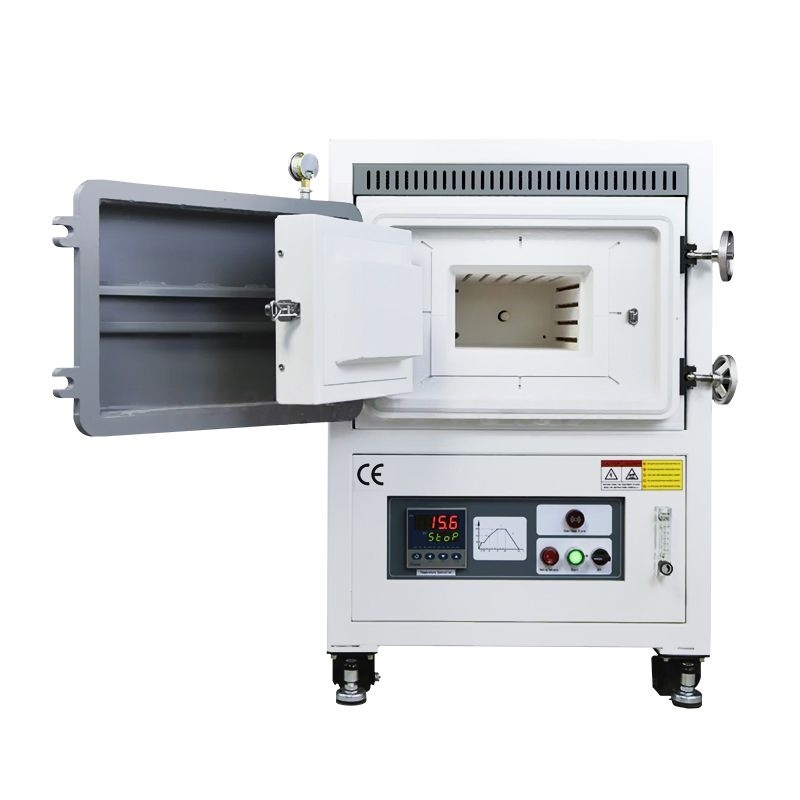

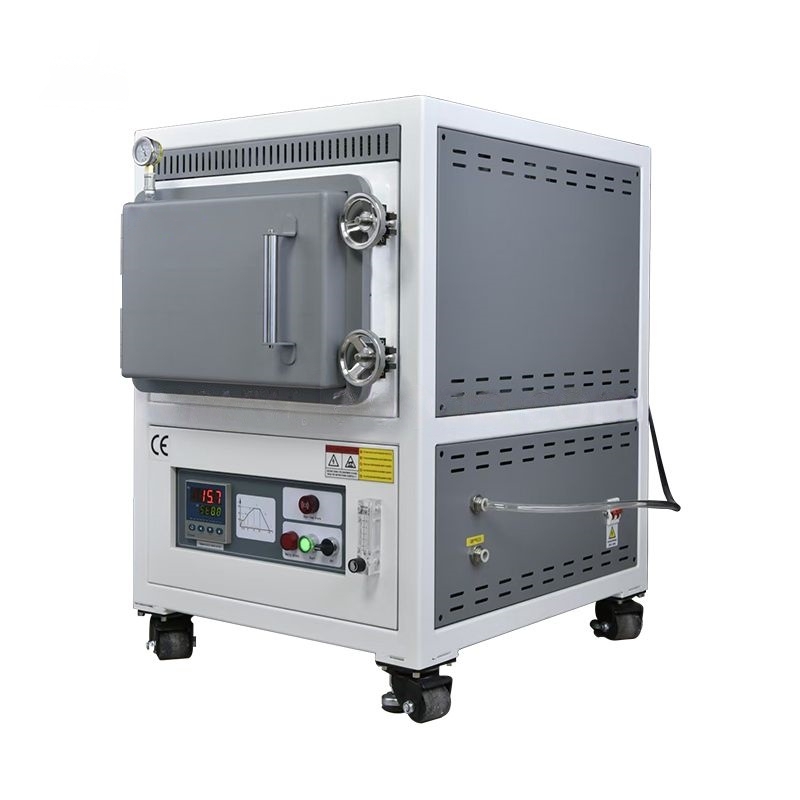

The low vacuum atmosphere furnace is a new type of heat treatment equipment that combines vacuum technology with heat treatment technology. It mainly provides a high-temperature heat treatment environment for laboratories in universities, research institutes, factories and enterprises, and can be used in new materials fields such as metal materials, ceramic materials, nanomaterials, and semiconductor materials.
FEATURES
1. The furnace material is made of imported light weight high-purity alumina ceramic material, which has high hardness, does not fall off at high temperature, has no volatilization during high-temperature sintering, is environmentally friendly and safe, and meets international industry standards.
2. The heating element adopts high-quality resistance wire, which is stable and has a long service life. The resistance wire is evenly arranged around the furnace, and the temperature field is uniform.
3. Fast heating speed, uniform temperature, with temperature compensation and temperature correction functions, safe and efficient.
4. Adopt intelligent PID temperature control instrument, which can set the temperature rise curve and program 30 program segments.
5. Integrated structure, excellent appearance design, beautiful and generous.
6. The machine will send out an alarm signal for over-temperature during operation and automatically complete the protection action.
7. When the instrument program is set, just press the run button and the following work will be completed automatically.
8. Optional large-screen paperless recorder or RS232 communication interface can be used to realize real-time recording of the heating curve, and a memory card can be used to analyze and print the experimental data.
9. Over-temperature and disconnection during operation will send out sound and light alarm signals and automatically complete the protection action.
10. The equipment is equipped with an air circuit breaker, which will automatically pop open in the event of a short circuit or leakage, thus protecting the safety of the equipment and operators.
SPECIFICATIONS
| Model | OQT3-3-12P | OQT3-8-12P | OQT3-12-12P | OQT3-18-12P | OQT3-30-12P | OQT3-36-12P | OQT3-64-12P | OQT3-75-12P | MFQ3-80-12P | MFQ3-125-12P | MFQ3-180-12P | MFQ3-255-12P |
| Operating temperature range | Max. 1200℃, working temperature 1150℃ | |||||||||||
| Temperature stability | ±1℃ | |||||||||||
| Temperature resolution | 0.1℃ | |||||||||||
| Heating rate | 1-20℃/minute freely settable | |||||||||||
| Vacuum degree | When equipped with a rotary vane vacuum pump, the vacuum degree is ≤20000pa | |||||||||||
| Exterior | Cold rolled steel sheet | |||||||||||
| Furnace | Polycrystalline Inorganic Ceramic Fiber Materials | |||||||||||
| Heater | Cr20Ni80 resistance wire, distributed on the left, right and bottom of the furnace for heating (MFQ5: HRE high temperature alloy resistance wire, five-sided heating) | |||||||||||
| Sensor | N-type thermocouple | |||||||||||
| Atmosphere | Optional float flow meter (0.6~60L/min) to control air intake | |||||||||||
| Temperature control method | Microcomputer PID control | |||||||||||
| Setting method | Touch button action | |||||||||||
| Display Mode | Double-line LED digital display | |||||||||||
| Run function | Automatic heating, automatic heat preservation, automatic stop, 30 programmable time periods, can meet the requirements of continuous constant temperature and temperature control | |||||||||||
| Safety devices | Over temperature alarm | |||||||||||
| Heating power | 2.5kW | 3kW | 4kW | 5kW | 7.5kW | 9kW | 12kW | 15kW | 15kW | 24kW | 27kW | 35kW |
| Voltage | AC220V | AC380V | ||||||||||
| Furnace size (W*D*H mm) | 150*150*150 | 200*300*120 | 200*300*200 | 250*300*250 | 300*500*200 | 300*400*300 | 400*400*400 | 430*500*350 | 400*500*400 | 500*500*500 | 600*600*500 | 500*850*600 |
| Additional configurations available | Vacuum pump, digital vacuum gauge, float flow meter | |||||||||||
APPLICATION

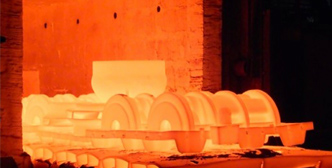

Material Science and Research- Industrial and Manufacturing

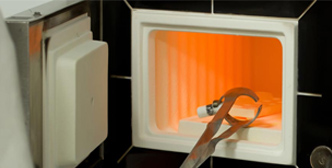

- Quality Control and Testing
- Laboratory Composition Facilities
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.

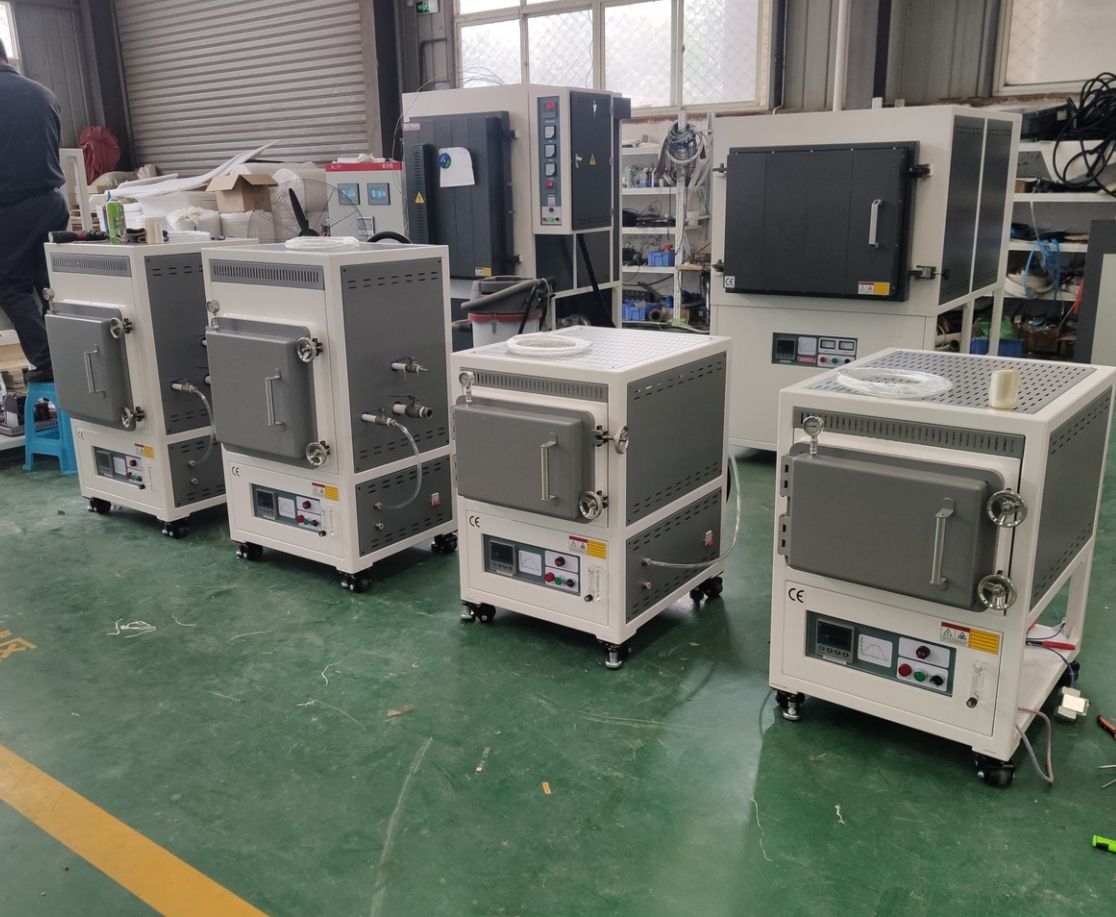

OUR FACTORY
