DESCRIPTION

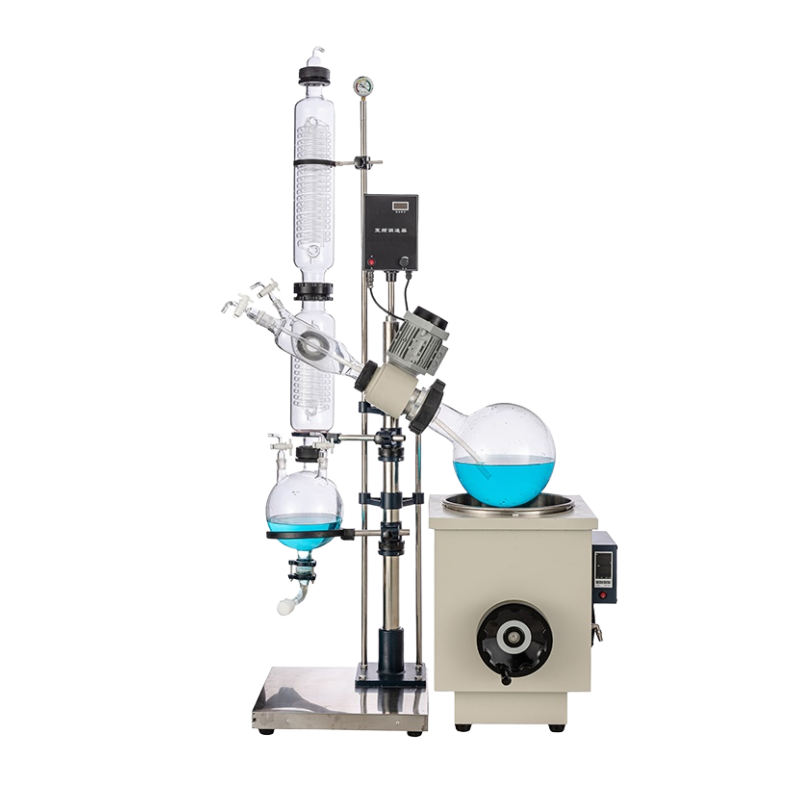

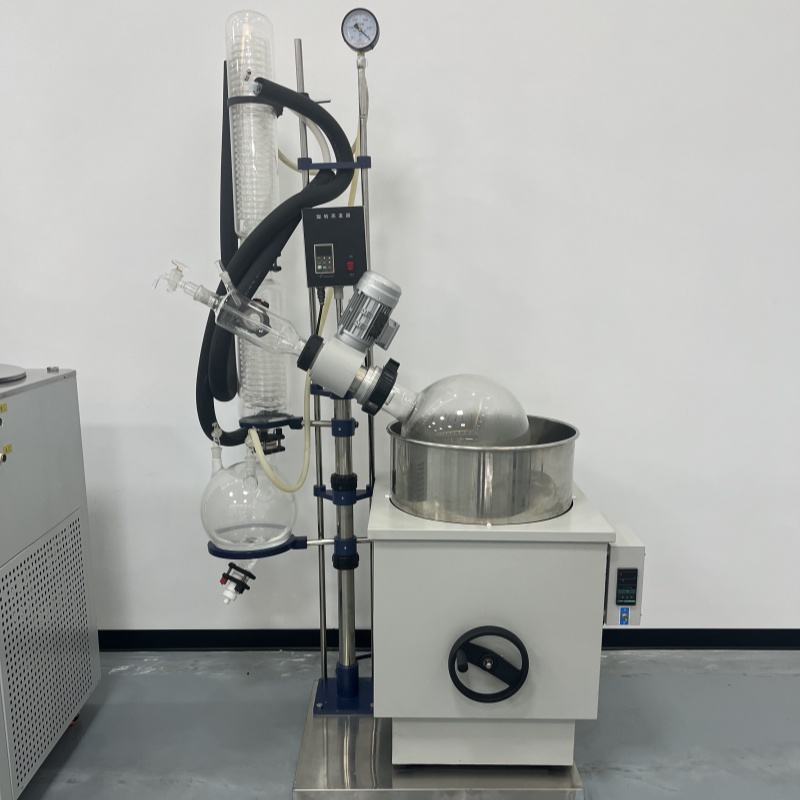

Rotary evaporator is the use of stepless speed control glass rotating bottle constant speed rotation, the material in the bottle wall to form a large area uniform film, and then by the intelligent constant temperature water bath on the rotating bottle of uniform heating, vacuum conditions, high-speed evaporation, Efficient glass condenser cooling, recovery in the collection bottle.
FEATURES
- Using PTFE + fluorine rubber seal cover, to maintain a high vacuum degree. Gas-liquid separation, no reflow .
- USES the main and secondary efficient double condenser to ensure high recovery rate.

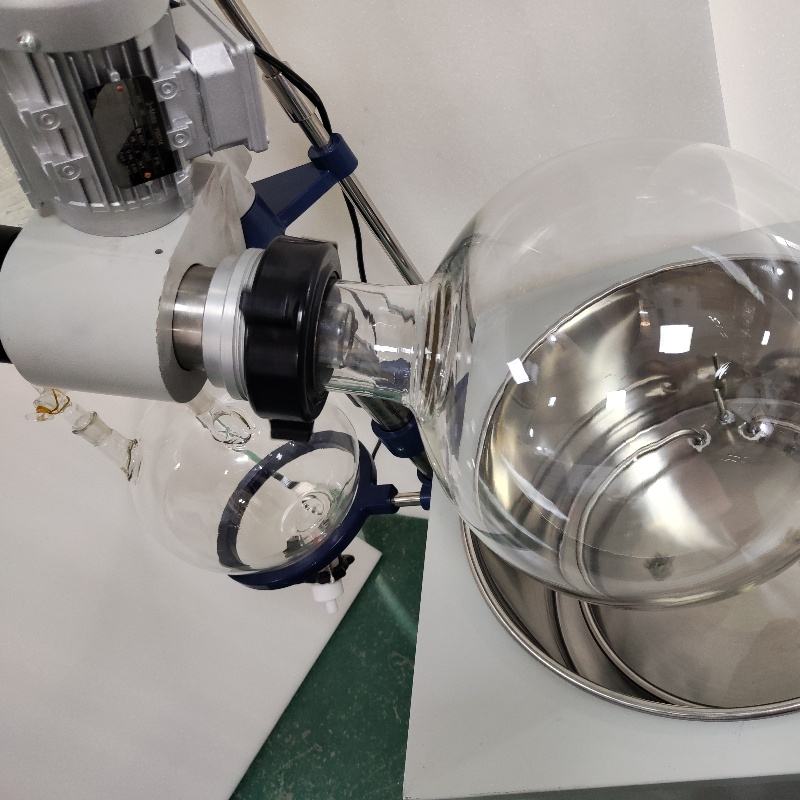

- Rotating bottle with nut connection, it is easy to load and unload.
- There is tap valve under the collection bottle mouth, recycled solvent is very fast.
- Feeding continuously.
- Vacuum gauge is to make sure the best work vacuum degree can be adjusted for the low boiling point materials.
- Water bath with digital and continuous temperature controlling.
- Reasonable structure, special materials.
- The mechanical structure mainly use stainless steel and aluminum alloy parts, glass pieces are all made of high temperature resistant and high boron glass.
- Imported Electrical key-module.
- Rubber seal is easy to adopt the new international, making it easy for users to purchase and update.
SPECIFICATIONS
| Model | OQT-1002 |
| Voltage/Frequency | 220V/50HZ |
| Whole power | 3120W |
| Rotary power | 120W |
| Heating power | 3000W |
| Vacuum degree | 0.0095Mpa |
| Rotary flask volume | 10L Φ280mm/Φ95 flange port |
| Receiving flask volume | 5L Φ230mm/ upper Φ60 flange*24# standard port*down Φ50 flange |
| Rotary speed | 0-120rpm/min |
| Temp.cotrolling range | room temperature -180℃ |
| Temp. accuracy | ±1℃ |
| Flask lifting distance | 180mm |
| Condenser size | The main condensor Φ120*620H(mm) ,upper Φ60 flange*down Φ80 flange The assisted condensor Φ135*475H(mm) ,upper Φ80 flange* down Φ60 flange*side Φ60 flange |
| Condensation area | 0.51(0.33+0.18)㎡ |
| Air guide bottle | left with Φ34 standard port, upper with 19# standard port, side with Φ60 flange port , right with Φ60 flange port |
| Charging valve | 34# standard plug valve, feed nozzle (pagoda-shape connectors) outer diameter 12mm |
| Multi-function port | 19# standard plug valve, glass nozzle (pagoda-shape connectors) outer diameter 12mm |
| Vacuum suction nozzle | Φ60 flange glass exhaustor, suction nozzle (pagoda-shape connectors) outer diameter 10mm |
| Condensing coil in and out circuation nozzle | Pagoda-shape connectors, outer diameter 16mm |
| Vent valve | 24#standard plug valve*2 vent nozzle (pagoda-shape connectors) outer diameter 12mm |
| Baiting valve | Φ50 flange port, side discharging nozzle(pagoda-shape connectors), outer diameter 20mm, 200mm from the floor |
| Pot bravery size | Φ350*220H（mm) about 21L |
| Overall dimensions (W*L*H) | 930*560*1910mm |
| Net weight | 74(49+25)kg |
| Packing dimensions | 1320*780*755mm, 0.78m³ |
| Packing weight | 107kg |
APPLICATION
- Chemical Laboratories
- Pharmaceutical Industry
- Essential Oil Extraction
- Cannabis Industry
- Food and Beverage Industry
- Environmental Analysis
- Academic Research
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.

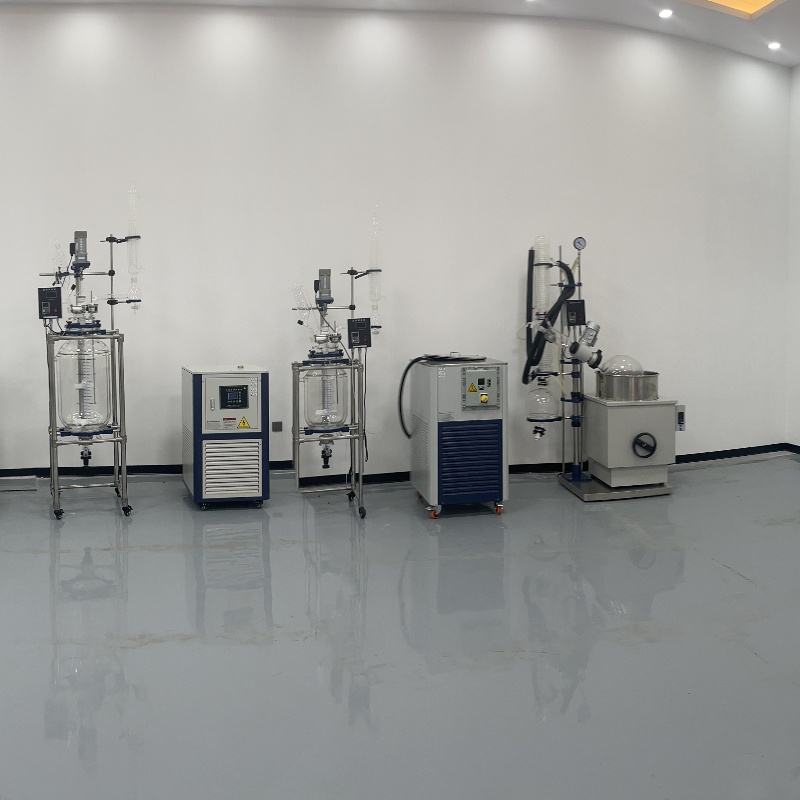

OUR FACTORY
