DESCRIPTION

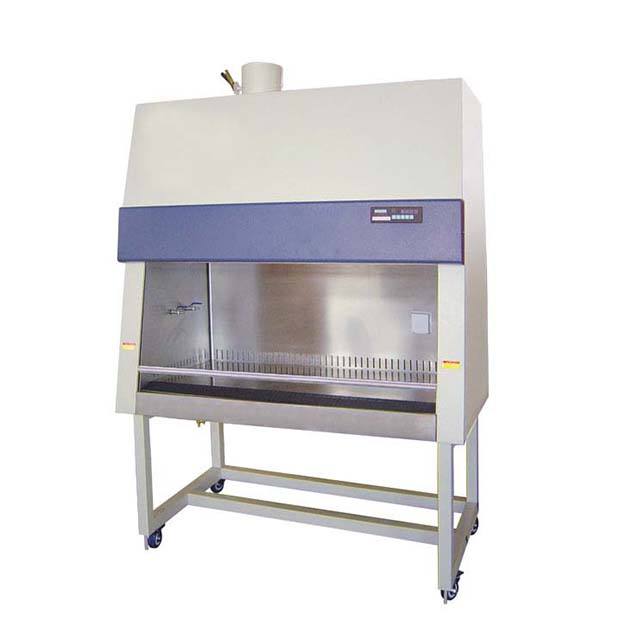

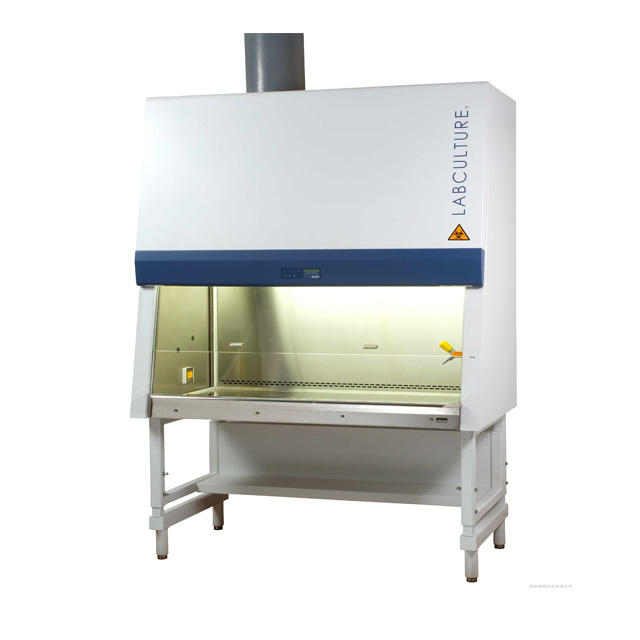

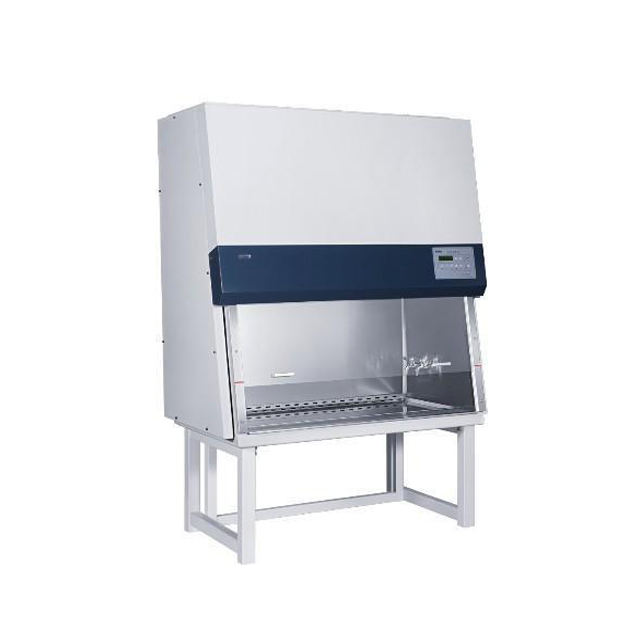

The purpose of a BSC is to serve as a means to protect the laboratory worker and the surrounding environment from pathogens. All exhaust air is HEPA-filtered as it exits the biosafety cabinet, removing harmful bacteria and viruses.
FEATURES
1. Air curtain type isolation design prevents internal and external cross contamination. (negative pressure type)
2. Move the glass door up and down with a height limit alarm prompt for the operator to use correctly.
3. Using HEPA non-separator high efficiency filter, the filtration efficiency reaches 99.999%.
4. Adopt LCD panel control, fan fault alarm reminder, boot time prompt and continuous running time prompt, filter life display prompt.
5. With scheduled sterilization and sterilization timing function. (With UV protection device, the UV lamp is automatically turned off after the operation door is opened 2 cm)
6. The tilting design of the cabinet is ergonomic and increases the operating comfort.
7. The four sides of the operation area are made of 304 high-quality stainless steel. The back and sides are integrally formed on three sides without welding and no leakage.
SPECIFICATIONS
| Model | BSC-1000B2 | BSC-1300B2 | BSC-1600B2 |
| Overall size (W*D*H) | 1200*850*2350mm | 1500*855*2350mm | 1800*800*2350mm |
| Purification area size (W*D*H) | 1000*570*635mm | 1300*570*635mm | 1600*570*635mm |
| Purification efficiency | ISO5 (Class 100)/ ISO4 (Class 10) | ||
| HEPA filter | HEPA/ULPA @ 0.3~0.12um 99.999%~99.9995% | ||
| Airflow system | 100% air exhaust | ||
| Downdraft velocity | 0.31±0.025m/s | ||
| Inflow velocity | 0.48±0.025m/s | ||
| Power | ≤1.5KW | ||
| Average colony account | ≤0.5A/dish/hour | ||
| Noise | ≤65dB(A) | ||
| Vibration half peak | ≤3μm (X.Y.Z) | ||
| Power supply | 220V 50Hz | ||
| Filter size (L*W*H) | 980*520*50mm | 1280*520*50mm | 1580*520*50mm |
| Fluorescent Lamp | 21W*2 | 28W*2 | 28W*2 |
| UV lamp | 21W*1 | 21W*1 | 14W*2 |
| Wind direction | Top ∅200mm | ||
| Illumination | ≥700LX | ||
| Weight | 160kg | 220kg | 280kg |
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe OQTSUPPLIES, we grow together!
