DESCRIPTION

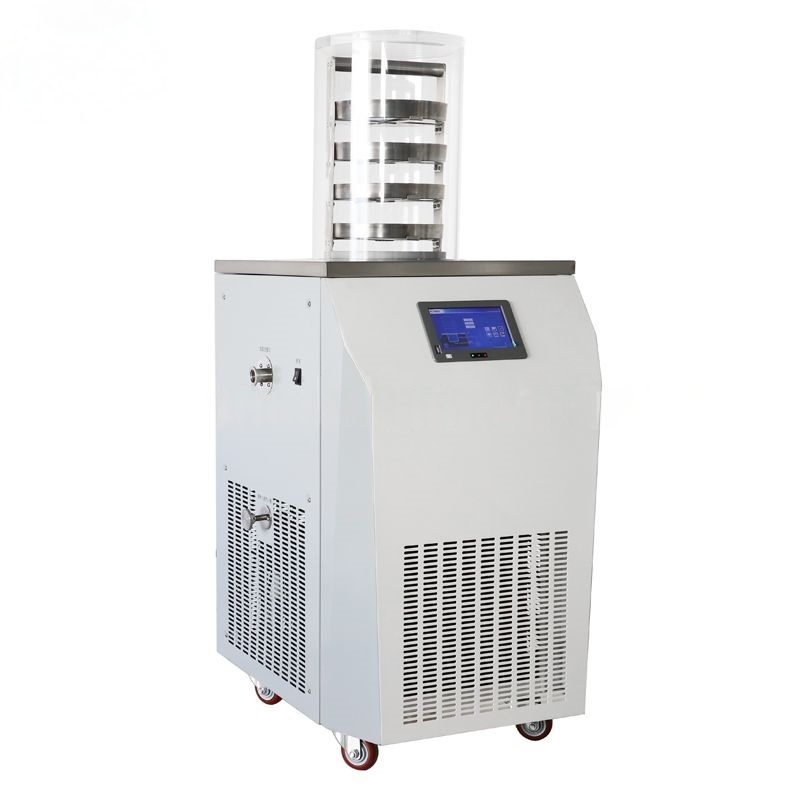

Freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process, a long term preservation for products is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.The vacuum freeze drying technology, which is also called sublimation drying, is a technical method that freezes samples in advance, and then sublimates its moisture in vacuum state.
FEATURES
1. CFC Free refrigeration

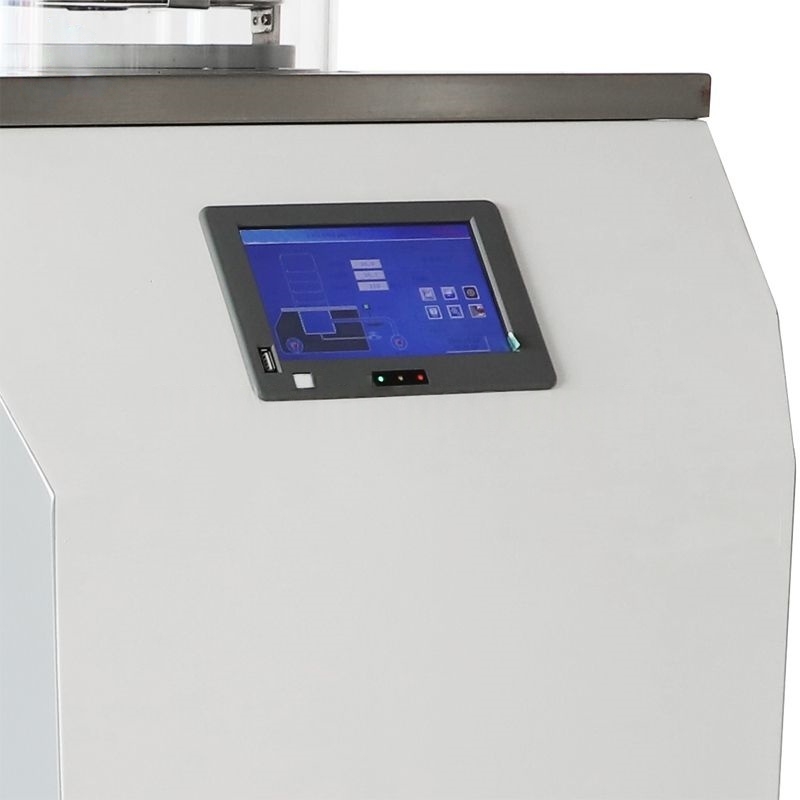

2. LCD display drying curves, English interface
3. Big opening of condenser, condenser with pre-freezing function
4. low noise compressor, good efficiency,long service life
5. Condenser and operation panel are all stainless steel

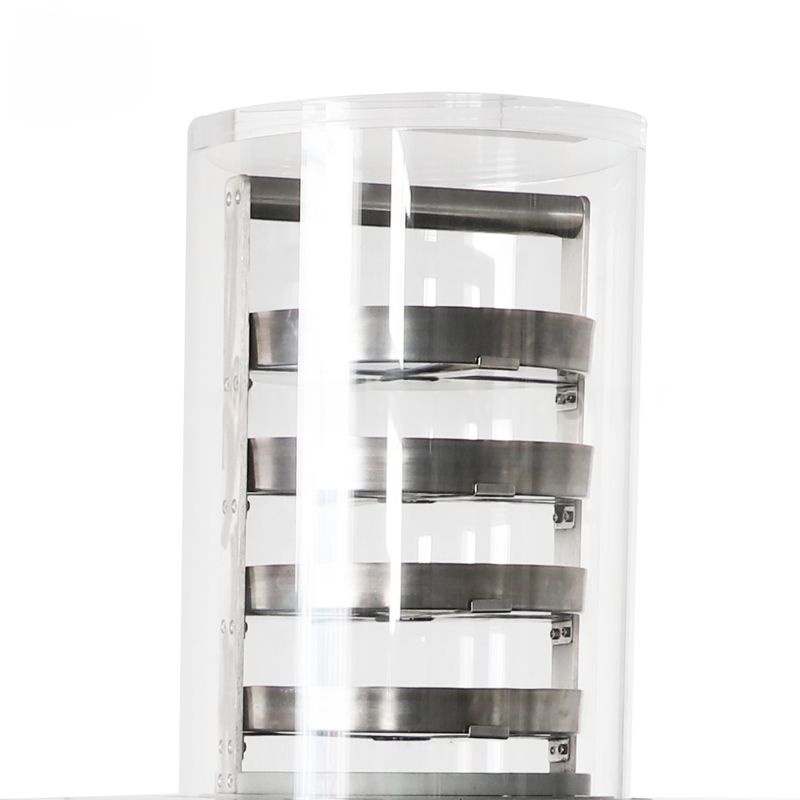

6. Drying Chamber with organic glass is safe and visible
7. Shelf and tray are stainless steel, tray spacing can be customized
8. Small volume , easy and convenient operation
9. Nitrogen valve is optional
10. Eutectic point test device is optional
11. Communication interface is optional
12. Cascade refrigeration is optional , applied for -80℃ device
SPECIFICATIONS
| Model | OQT-18A |
| freeze drying area | 0.18㎡/0.27㎡ |
| tray size | Ф240mm |
| No. of tray | 4pcs/6pcs |
| tray spacing | 70mm |
| cold trap temperature | ≤-56C，optional≤-80℃ |
| cold trap dept | 400mm |
| cold trap dia. | Ф270mm |
| ice collecting capacity | 6kg/24h |
| pumping speed | 4L/S |
| ultimate vacuum | ≤5pa |
| power | 1400w |
| weight | 105kg |
| main unit dimensions | 630×580×970mm |
| -80℃ main unit dimensions | 810×580×950mm |
| drying chamber size | Ф300×445mm |
| cooling mode | wind cooled |
| defrosting mode | air cooled |
| capacity | 1.8L/2.7L（thickness 10mm） |
APPLICATION
Food Industry-
Pharmaceutical Industry
-
Biotechnology and Research
-
Floral and Herbal Industry
