DESCRIPTION
This model is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process,a long term preservation is much easier. They can be restored to the original state and mantain their chemical and biological characteristics after being watered. It is suitable for experiment in laboratory and small amount production ,and can meet the regular freeze dying requirements of the most laboratories.
When preparing for lyophilization, the materials are put into vials according to requirements. Freeze drying is performed with the unsealed vials’lid. After finishing the drying,the vials’ lid is compacted to avoid secondary pollution, re-adsorption of water, easy to long-term storage;
Put the flask outside the drying chamber to dry the inner wall frozen material. The flask is as a container and connected to the manifold outside the drying chamber. The material in the flask is heated by room temperature . The flask can be removed or loaded at any time without downtime by the multi-manifold switch.
FEATURES
1. CFC Free refrigeration
2. LCD display drying curves, English interface
3. Big opening of condenser, condenser with pre-freezing function
4. low noise compressor, good efficiency,long service life
5. Condenser and operation panel are all stainless steel

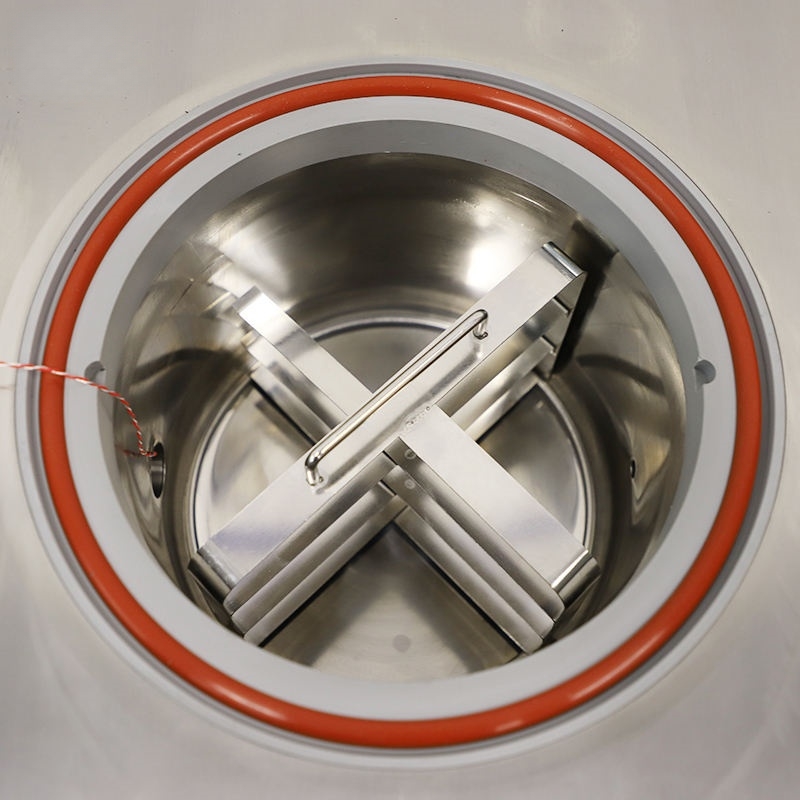

6. Drying Chamber with organic glass is safe and visible
7. Shelf and tray are stainless steel, tray spacing can be customized
8. Small volume , easy and convenient operation
9. Nitrogen valve is optional
10. Eutectic point test device is optional
11. Communication interface is optional
12. Cascade refrigeration is optional , applied for -80℃ device
SPECIFICATIONS
| Model | OQT-18D |
| freeze drying area | 0.09㎡ |
| tray dimensions | Ф200mm |
| tray numbers | 3 |
| tray spacing | 70mm |
| cold trap temp. | ≤-60℃，optional ≤-80℃ |
| cold trap depth | 400mm |
| cold trap dia. | Ф270mm |
| ice collecting capacity | 6kg/24h |
| pumping speed | 4L/S |
| ultimate vacuum | ≤5pa |
| power | 1400w |
| main unit weight | 105kg |
| main unit dimensions | 630×580×970mm |
| -80℃ main unit dimensions | 810×580×950mm |
| drying chamber dimensions | φ300×570mm |
| cooling mode | wind cooled |
| defrosing mode | by air |
| shipping weight | 0.9L（thickness 10mm） |
| loadable vials quantity | |
| Ф12mm | 615pcs |
| Ф16mm | 345pcs |
| Ф22mm | 183pcs |
APPLICATION
Food Industry-
Pharmaceutical Industry
-
Biotechnology and Research
-
Floral and Herbal Industry
